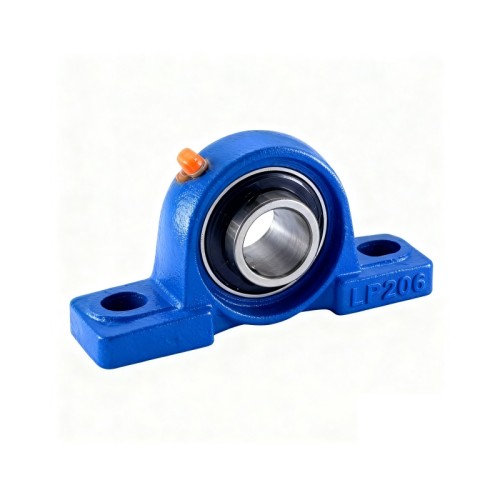

UCLP200 Pillow Block Bearing Units

Model: UCLP 200

Item specifics

Bearing Insert: UC2 Series

Housing Type: LP200 Pillow Block

Material: Cast Iron

Review

Description

The UCLP200 pillow block bearing unit features an eccentric locking collar, making it ideal for applications that involve reversing motion or vibration. It provides reliable shaft locking, stable performance, and easy installation for a wide range of industrial machinery.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

UCLP200 Pillow Block Bearing Units Dimensions

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing No.	Housin g No.	Weight (kg)
Unit NO.	d	h	a	e	b	S1	S2	g	W	B	n	Bolt Size mm/in.	Bearing No.	Housin g No.	Weight (kg)
UCLP201	12	31.75	127	95	38	13	16	14	64	31	12.7	M10	UC201	LP201	0.69
201-8	1/2	1-1/4	5	3-3/4	1-1/2	1/2	5/8	9/16	2-33/64	1.2205	0.500	3/8	UC201-8	LP201	0.68
UCLP202	15	31.75	127	95	38	13	16	14	64	31	12.7	M10	UC202	LP202	0.68
202-9	9/16	1-1/4	5	3-3/4	1-1/2	1/2	5/8	9/16	2-33/64	1.2205	0.500	3/8	UC202-9		0.68
202-10	5/8	1-1/4	5	3-3/4	1-1/2	1/2	5/8	9/16	2-33/64	1.2205	0.500	3/8	UC202-10		0.68
UCLP203	17	31.75	127	95	38	13	16	14	64	31	12.7	M10	UC203	LP203	0.67
203-11	1/16	1-1/4	5	3-3/4	1-1/2	1/2	5/8	9/16	2-33/64	1.2205	0.500	3/8	UC203-11	LP203	0.66
UCLP204	20	31.75	127	95	38	13	16	14	64	31	12.7	M10	UC204	LP204	0.65
204-12	3/4	1-1/4	5	3-3/4	1-1/2	1/2	5/8	9/16	2-33/64	1.2205	0.500	3/8	UC204-12	LP204	0.65
UCLP205	25	33.34	140	105	38	13	16	15	68	34.1	14.3	M10	UC205	LP205	0.74
205-13	3/16	1-5/16	5-1/2	4-1/8	1-1/2	1/2	5/8	19/32	2-43/64	1.3425	0.563	3/8	UC205-13		0.78
205-14	7/8												UC205-14		0.77
205-15	15/16												UC205-15		0.75
205-16	1												UC205-16		0.74
UCLP206	30	39.69	160	121	44	17	20	17	80	38.1	15.9	M14	UC206	LP206	1.11
206-17	1-1/16	1-9/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/32	1.5000	0.626	1/2	UC206-17		1.12
206-18	1-1/8												UC206-18		1.13
206-19	1-3/16												UC206-19		1.11
206-20	1-1/4												UC206-20		1.10
UCLP207	35	46.04	167	127	48	17	20	18	91	42.9	17.5	M14	UC207	LP207	1.42
207-20	1-1/4	1-13/16	6-9/16	5	1-7/8	43/64	25/32	45/64	3-37/64	1.6890	0.689	1/2	UC207-20		1.48
207-21	1-5/16												UC207-21		1.45
207-22	1-3/8												UC207-22		1.42
207-23	1-7/16												UC207-23		1.39
UCLP208	40	49.2	184	137	54	17	20	18	100	49.2	19	M14	UC208	LP208	1.87
208-24	1-1/2	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	1.9370	0.748	1/2	UC208-24		1.91
208-25	1-9/16	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	1.9370	0.748	1/2	UC208-25		1.88
UCLP209	45	52.39	190	146	54	17	20	20	104	49.2	19	M14	UC209	LP209	2.03
209-26	1-5/8	2-1/16	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-3/32	1.9370	0.748	1/2	UC209-26		2.13
209-27	1-11/16												UC209-27		2.09
209-28	1-3/4												UC209-28		2.05
UCLP210	50	55.56	206	159	60	20	23	21	112	51.6	19.0	M16	UC210	LP210	2.60
210-29	1-13/16	2-3/16	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-13/32	2.0315	0.748	5/8	UC210-29		2.72
210-30	1-7/8												UC210-30		2.67
210-31	1-15/16												UC210-31		2.62
210-32	2												UC210-32		2.58
UCLP211	55	61.91	219	171	60	20	23	23	124	55.6	22.2	M16	UC211	LP211	3.22
211-32	2	2-7/16	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-7/8	2.1890	0.874	5/8	UC211-32		3.37
211-33	2-1/16												UC211-33		3.31
211-34	2-1/8												UC211-34		3.27
211-35	2-3/16												UC211-35		3.20
UCLP212	60	68.26	241	184	70	20	23	25	136	65.1	25.4	M16	UC212	LP212	4.39
212-36	2-1/4	2-11/16	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-23/64	2.5630	1.000	5/8	UC212-36		4.52
212-37	2-5/16												UC212-37		4.44
212-38	2-3/8												UC212-38		4.37
212-39	2-7/16												UC212-39		4.30
