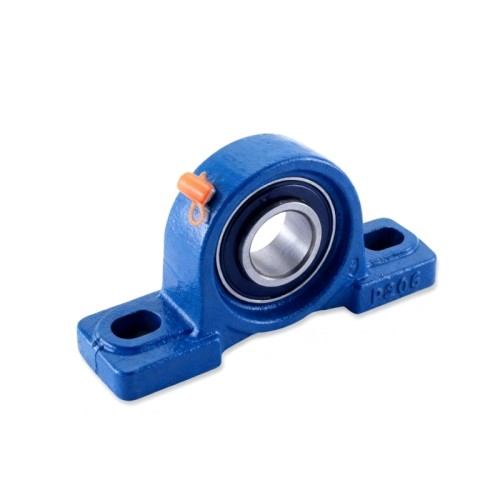

UKP200 Pillow Block Bearing Units

Model: UKP 200

Item specifics

Bearing Insert: UK2 Series

Housing Type: P200 Pillow Block

Material: Cast Iron

Review

Description

The UKP200 pillow block bearing unit features an eccentric locking collar, making it ideal for applications that involve reversing motion or vibration. It provides reliable shaft locking, stable performance, and easy installation for a wide range of industrial machinery.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

UKP200 Pillow Block Bearing Units Dimensions

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	h	a	e	b	S1	S2	g	W	t	B	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
UKP205H2305	20	36.5	140	105	38	13	19	15	71	48	35	M10	UK205; H2305	P205	0.81
205;HE2305	3/4	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.378	3/8	UK205;HE2305	P205	0.81
UKP206:H2306	25	42.9	160	121	44	17	20	17	84	53	38	M14	UK206; H2306	P206	1.26
206;HS2306	7/8	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	43/64	3-5/16	2-5/64	1.496	1/2	UK206; HS2306
206;HE2306	1	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	43/64	3-5/16	2-5/64	1.496	1/2	UK206; HE2306
UKP207;H2307	30	47.6	167	127	48	17	20	18	93	59.5	43	M14	UK207; H2307	P207	1.53
207;HS2307	1-1/8	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.693	1/2	UK207; HS2307	P207	1.53
UKP208;H2308	35	49.2	184	137	54	17	20	18	100	69	46	M14	UK208; H2308	P208	1.93
208;HE2308	1-1/4	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.811	1/2	UK208; HE2308
208;HS2308	1-3/8	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.811	1/2	UK208; HS2308
UKP209:H2309	40	54.0	190	146	54	17	20	20	106	69	50	M14	UK209; H2309	P209	2.18
209;HA2309	1-7/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.969	1/2	UK209; HA2309
209;HE2309	1-1/2												UK209; HE2309
209;HS2309	1-5/8												UK209; HS2309
UKP210;H2310	45	57.2	206	159	60	20	23	21	113	74.5	55	M16	UK210; H2310	P210	2.78
210;HS2310	1-5/8	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.165	5/8	UK210; HS2310
210;HA2310	1-11/16												UK210; HA2310
210;HE2310	1-3/4												UK210; HE2310
UKP211;H2311	50	63.5	219	171	60	20	23	23	125	76	59	M16	UK211; H2311	P211	3.39
211;HS2311	1-7/8	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.323	5/8	UK211; HS2311
211;HA2311	1-15/16												UK211; HA2311
211;HE2311	2												UK211; HE2311
UKP212;H2312	55	69.8	241	184	70	20	23	25	138	89	62	M16	UK212; H2312	P212	4.52
212;HS2312	2-1/8	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.441	5/8	UK212; HS2312	P212	4.52
UKP213;H2313	60	76.2	265	203	70	25	28	27	150	89	65	M20	UK213; H2313	P213	5.47
213;HA2313	2-3/16	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.559	3/4	UK213; HA2313
213;HE2313	2-1/4												UK213; HE2313
213;HS2313	2-3/8												UK213; HS2313
UKP215:H2315	65	82.6	275	217	74	25	28	28	162	99	73	M20	UK215; H2315	P215	6.84
215;HA2315	2-7/16	3-1/4	0-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	2.874	3/4	UK215; HA2315
215;HE2315	2-1/2	3-1/4	0-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	2.874	3/4	UK215; HE2315
UKP216:H2316	70	88.9	292	232	78	25	28	30	174	109	78	M20	UK216; H2316	P216	8.29
216;HA2316	2-11/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.071	3/4	UK216; HA2316
216;HE2316	2-3/4	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.071	3/4	UK216; HE2316
UKP217:H2317	75	95.2	310	247	83	25	28	32	185	113.2	82	M20	UK217; H2317	P217	9.97
217;HA2317	2-15/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.228	3/4	UK217; HA2317
217;HE2317	3	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.228	3/4	UK217; HE2317
UKP218:H2318	80	101.6	327	262	88	27	30	33	198	123	86	M22	UK218; H2318	P218	11.89
218;HA2318	3-3/16	4	12-7/8	10-5/16	3-15/32	1-1/16	1-3/16	1-19/64	7-51/64	4-27/32	3.386	7/8	UK218; HA2318	P218	11.89

recommend

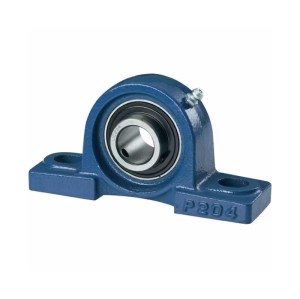

UCP200 Pillow Block Bearing Units

Model : UKP 200

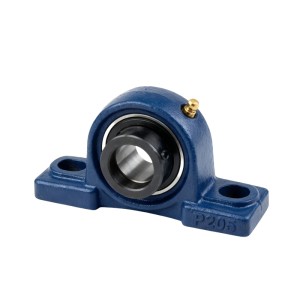

HCP200 Pillow Block Bearing Units

Model : UKP 200

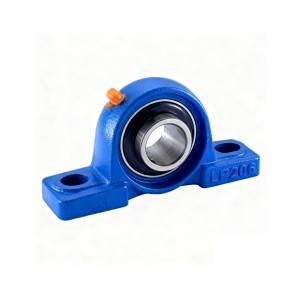

UCLP200 Pillow Block Bearing Units
