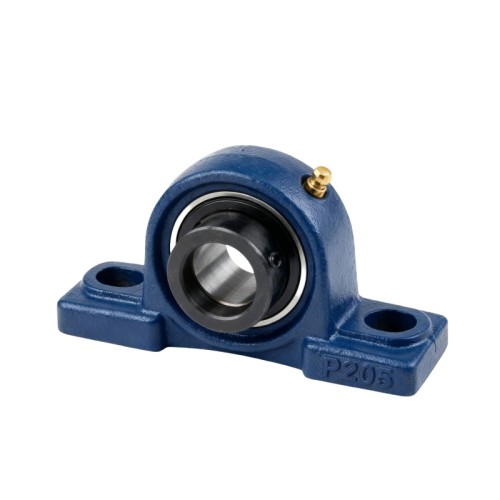

HCP200 Pillow Block Bearing Units
Description
| Unit NO. | Dimensions(mm/in.) | Bolt Size
mm/in. |
Bearing No | Housing
No. | Weight
(kg) |
|---|
| d | h | a |
e | b | S1 |
S2 | 9 | W |
B1 | n |
|---|
| HCP204 | 20 | 33.3 | 127 |
95 | 38 | 13 | 19 |
14 | 65 | 43.7 | 17.1 |
M10 | HC204 | P204 | 0.70 |
| 204-12 | 3/4 | 1-5/16 | 5 |
3-3/4 | 1-1/2 | 1/2 | 3/4 |
9/16 | 2-9/16 | 1.720 | 0.673 |
3/8 | HC204-12 | 0.70 |
| HCP205 | 25 | 36.5 | 140 |
105 | 38 | 13 | 19 |
15 | 71 | 44.4 | 17.5 |
M10 | HC205 | P205 | 0.81 |
| 205-13 | 13/16 | 1-7/16 | 5-1/2 |
4-1/8 | 1-1/2 | 1/2 | 3/4 |
19/32 | 2-25/32 | 1.748 | 0.689 |
3/8 | HC205-13 | 0.86 |
| 205-14 | 7/8 | HC205-14 | 0.85 |
| 205-15 | 15/16 | HC205-15 | 0.83 |
| 205-16 | 1 | HC205-16 | 0.81 |
| HCP206 | 30 | 42.9 | 160 |
121 | 44 | 17 | 20 |
17 | 84 | 48.4 | 18.3 |
M14 | HC206 | P206 | 1.27 |
| 206-17 | 1-1/16 | 1-11/16 | 6-19/64 |
4-3/4 | 1-47/64 | 43/64 | 25/32 |
21/32 | 3-5/16 | 1.906 | 0.720 |
1/2 | HC206-17 | 1.32 |
| 206-18 | 1-1/8 | HC206-18 | 1.29 |
| 206-19 | 1-3/16 | HC206-19 | 1.27 |
| 206-20 | 1-1/4 | HC206-20 | 1.24 |
| HCP207 | 35 | 47.6 | 167 |
127 | 48 | 17 | 20 |
18 | 93 | 51.1 | 18.8 |
M14 | HC207 | P207 | 160 |
| 207-20 | 1-1/4 | 1-7/8 | 6-9/16 |
5 | 1-7/8 | 43/64 | 25/32 |
45/64 | 3-21/32 | 2.012 | 0.740 |
1/2 | HC207-20 | 1.67 |
| 207-21 | 1-5/16 | HC207-21 | 163 |
| 207-22 | 1-3/8 | HC207-22 | 1.60 |
| 207-23 | 1-7/16 | HC207-23 | 1.58 |
| HCP208 | 40 | 49.2 | 184 |
137 | 54 | 17 | 20 |
18 | 100 | 56.3 | 21.4 |
M14 | HC208 | P208 | 1.99 |
| 208-24 | 1-1/2 | 1-15/16 | 7-1/4 |
5-13/32 | 2-1/8 | 43/64 | 25/32 |
45/64 | 3-15/16 | 2.217 | 0.843 |
1/2 | HC208-24 | 2,04 |
| 208-25 | 1-9/16 | HC208-25 | 2.00 |
| HCP209 | 45 | 54.0 | 190 |
146 | 54 | 17 | 20 |
20 | 106 | 56.3 | 21.4 |
M14 | HC209 | P209 | 2.19 |
| 209-26 | 1-5/8 | 2-1/8 | 7-15/32 |
5-3/4 | 2-1/8 | 43/64 | 25/32 |
25/32 | 4-11/64 | 2.217 | 0.843 |
1/2 | HC209-26 | 2.30 |
| 209-27 | 1-11/16 | HC209-27 | 2.25 |
| 209-28 | 1-3/4 | HC209-28 | 2.21 |
| HCP210 | 50 | 57.2 | 206 |
159 | 60 | 20 | 23 |
21 | 113 | 62.7 | 24.6 |
M16 | HC210 | P210 | 2.80 |
| 210-29 | 1-13/16 | 2-1/4 | 8-1/8 |
6-1/4 | 2-3/8 | 25/32 | 29/32 |
53/64 | 4-29/64 | 2.469 | 0.969 |
5/8 | HC210-29 | 2.95 |
| 210-30 | 1-7/8 | HC210-30 | 2.89 |
| 210-31 | 1-15/16 | HC210-31 | 2.83 |
| 210-32 | 2 | HC210-32 | 2.77 |
| HCP211 | 55 | 63.5 | 219 |
171 | 60 | 20 | 23 |
23 | 125 | 71.4 | 27.8 |
M16 | HC211 | P211 | 3.50 |
| 211-32 | 2 | 2-1/2 | 8-5/8 |
6-47/64 | 2-3/8 | 25/32 | 29/32 |
29/32 | 4-59/64 | 2.811 | 1.094 |
5/8 | HC211-32 | 3.80 |
| 211-33 | 2-1/16 | HC211-33 | 3.62 |
| 211-34 | 2-1/8 | HC211-34 | 3.55 |
| 211-35 | 2-3/16 | HC211-35 | 3.47 |
| HCP212 | 60 | 69.8 | 241 |
184 | 70 | 20 | 23 |
25 | 138 | 77.8 | 31.0 |
M16 | HC212 | P212 | 4.76 |
| 212-36 | 2-1/4 | 2-3/4 | 9-1/2 |
7-1/4 | 2-3/4 | 25/32 | 29/32 |
63/64 | 5-7/16 | 3.063 | 1.22 |
5/8 | HC212-36 | 4.78 |
| 212-37 | 2-5/16 | HC212-37 | 4.83 |
| 212-38 | 2-3/8 | HC212-38 | 4.76 |
| 212-39 | 2-7/16 | HC212-39 | 4.75 |
| HCP213 | 65 | 76.23 | 265 |
203 | 70 | 25 | 28 |
27 | 150 | 85.7 | 34.1 |
M20 | HC213 | P213 | 5.89 |
| 213-40 | 2-1/2 | 3 | 10-7/16 |
8 | 2-3/4 | 63/64 | 1-3/32 |
1-1/16 | 5-29/32 | 3.374 | 1.343 |
3/4 | HC213-40 | 6.00 |
| 213-41 | 2-9/16 | HC213-41 | 5.88 |
| HCP214 | 70 | 79.4 | 266 |
210 | 72 | 25 | 28 |
27 | 156 | 85.7 | 34.1 |
M20 | HC214 | P214 | 6.27 |
| 214-42 | 2-5/8 | 3-1/8 | 10-15/32 |
8-17/64 | 2-27/32 | 63/64 | 1-3/32 |
1-1/16 | 6-9/64 | 3.374 | 1.343 |
3/4 | HC214-42 | 6.21 |
| 214-43 | 2-11/16 | HC214-43 | 6.40 |
| 214-44 | 2-3/4 | HC214-44 | 6.28 |
| HCP215 | 75 | 82.6 | 275 |
217 | 74 | 25 | 28 |
28 | 162 | 92.1 | 37.3 |
M20 | HC215 | P215 | 6.93 |
| 215-45 | 2-13/16 | 3-1/4 | 10-53/64 |
8-35/64 | 2-29/32 | 63/64 | 1-3/32 |
1-3/32 | 6-3/8 | 3.626 | 1.469 |
3/4 | HC215-45 | 7.23 |
| 215-46 | 2-7/8 | HC215-46 | 7.10 |
| 215-47 | 2-15/16 | HC215-47 | 6.97 |
| 215-48 | 3 | HC215-48 | 6.83 |
| HCP216 | 80 | 88.9 | 292 |
232 | 78 | 25 | 28 |
30 | 174 | 95.2 | 37.3 |
M20 | HC216 | P216 | 8.54 |
| 216-49 | 3-1/16 | 3-1/2 | 11-1/2 |
9-1/8 | 3-1/16 | 63/64 | 1-3/32 |
1-3/16 | 6-27/32 | 3.748 | 1.469 |
3/4 | HC216-49 | 8.74 |
| 216-50 | 3-1/8 | HC216-50 | 8.60 |
| 216-51 | 3-3/16 | HC216-51 | 8.45 |
| HCP217 | 85 | 95.2 | 310 |
247 | 83 | 25 | 28 |
32 | 185 | 73.8 | 23.4 |
M20 | HC217 | P217 | 9.81 |
| 217-52 | 3-1/4 | 3-3/4 | 12-13/64 |
9-23/32 | 3-17/64 | 63/64 | 1-3/32 |
1-1/4 | 7-9/32 | 2.906 | 0.921 |
3/4 | HC217-52 | 10.00 |
| 217-53 | 3-5/16 | HC217-53 | 9.88 |
| 217-55 | 3-7/16 | HC217-55 | 9.63 |
| HCP218 | 90 | 101.64 | 327 |
262 | 88 | 27 | 30 |
33 | 198 | 72.6 | 24.5 |
M22 | HC218 | P218 | 11.41 |
| 218-56 | 3-1/2 | 4 | 12-7/8 |
10-5/16 | 3-15/32 | 1-1/16 | 1-3/16 |
1-19/64 | 7-51/64 | 2.858 | 0.965 |
7/8 | HC218-56 | 11.50 |
| Unit NO. | Dimensions(mm/in.) | Bolt Size
mm/in. |
Bearing No | Housing
No. | Weight
(kg) |
|---|
| d | h | a |
e | b | S1 |
S2 | 9 | W |
B1 | n |
|---|
| HCP204 | 20 | 33.3 | 127 |
95 | 38 | 13 | 19 |
14 | 65 | 43.7 | 17.1 |
M10 | HC204 | P204 | 0.70 |
| 204-12 | 3/4 | 1-5/16 | 5 |
3-3/4 | 1-1/2 | 1/2 | 3/4 |
9/16 | 2-9/16 | 1.720 | 0.673 |
3/8 | HC204-12 | 0.70 |
| HCP205 | 25 | 36.5 | 140 |
105 | 38 | 13 | 19 |
15 | 71 | 44.4 | 17.5 |
M10 | HC205 | P205 | 0.81 |
| 205-13 | 13/16 | 1-7/16 | 5-1/2 |
4-1/8 | 1-1/2 | 1/2 | 3/4 |
19/32 | 2-25/32 | 1.748 | 0.689 |
3/8 | HC205-13 | 0.86 |
| 205-14 | 7/8 | HC205-14 | 0.85 |
| 205-15 | 15/16 | HC205-15 | 0.83 |
| 205-16 | 1 | HC205-16 | 0.81 |
| HCP206 | 30 | 42.9 | 160 |
121 | 44 | 17 | 20 |
17 | 84 | 48.4 | 18.3 |
M14 | HC206 | P206 | 1.27 |
| 206-17 | 1-1/16 | 1-11/16 | 6-19/64 |
4-3/4 | 1-47/64 | 43/64 | 25/32 |
21/32 | 3-5/16 | 1.906 | 0.720 |
1/2 | HC206-17 | 1.32 |
| 206-18 | 1-1/8 | HC206-18 | 1.29 |
| 206-19 | 1-3/16 | HC206-19 | 1.27 |
| 206-20 | 1-1/4 | HC206-20 | 1.24 |
| HCP207 | 35 | 47.6 | 167 |
127 | 48 | 17 | 20 |
18 | 93 | 51.1 | 18.8 |
M14 | HC207 | P207 | 160 |
| 207-20 | 1-1/4 | 1-7/8 | 6-9/16 |
5 | 1-7/8 | 43/64 | 25/32 |
45/64 | 3-21/32 | 2.012 | 0.740 |
1/2 | HC207-20 | 1.67 |
| 207-21 | 1-5/16 | HC207-21 | 163 |
| 207-22 | 1-3/8 | HC207-22 | 1.60 |
| 207-23 | 1-7/16 | HC207-23 | 1.58 |
| HCP208 | 40 | 49.2 | 184 |
137 | 54 | 17 | 20 |
18 | 100 | 56.3 | 21.4 |
M14 | HC208 | P208 | 1.99 |
| 208-24 | 1-1/2 | 1-15/16 | 7-1/4 |
5-13/32 | 2-1/8 | 43/64 | 25/32 |
45/64 | 3-15/16 | 2.217 | 0.843 |
1/2 | HC208-24 | 2,04 |
| 208-25 | 1-9/16 | HC208-25 | 2.00 |
| HCP209 | 45 | 54.0 | 190 |
146 | 54 | 17 | 20 |
20 | 106 | 56.3 | 21.4 |
M14 | HC209 | P209 | 2.19 |
| 209-26 | 1-5/8 | 2-1/8 | 7-15/32 |
5-3/4 | 2-1/8 | 43/64 | 25/32 |
25/32 | 4-11/64 | 2.217 | 0.843 |
1/2 | HC209-26 | 2.30 |
| 209-27 | 1-11/16 | HC209-27 | 2.25 |
| 209-28 | 1-3/4 | HC209-28 | 2.21 |
| HCP210 | 50 | 57.2 | 206 |
159 | 60 | 20 | 23 |
21 | 113 | 62.7 | 24.6 |
M16 | HC210 | P210 | 2.80 |
| 210-29 | 1-13/16 | 2-1/4 | 8-1/8 |
6-1/4 | 2-3/8 | 25/32 | 29/32 |
53/64 | 4-29/64 | 2.469 | 0.969 |
5/8 | HC210-29 | 2.95 |
| 210-30 | 1-7/8 | HC210-30 | 2.89 |
| 210-31 | 1-15/16 | HC210-31 | 2.83 |
| 210-32 | 2 | HC210-32 | 2.77 |
| HCP211 | 55 | 63.5 | 219 |
171 | 60 | 20 | 23 |
23 | 125 | 71.4 | 27.8 |
M16 | HC211 | P211 | 3.50 |
| 211-32 | 2 | 2-1/2 | 8-5/8 |
6-47/64 | 2-3/8 | 25/32 | 29/32 |
29/32 | 4-59/64 | 2.811 | 1.094 |
5/8 | HC211-32 | 3.80 |
| 211-33 | 2-1/16 | HC211-33 | 3.62 |
| 211-34 | 2-1/8 | HC211-34 | 3.55 |
| 211-35 | 2-3/16 | HC211-35 | 3.47 |
| HCP212 | 60 | 69.8 | 241 |
184 | 70 | 20 | 23 |
25 | 138 | 77.8 | 31.0 |
M16 | HC212 | P212 | 4.76 |
| 212-36 | 2-1/4 | 2-3/4 | 9-1/2 |
7-1/4 | 2-3/4 | 25/32 | 29/32 |
63/64 | 5-7/16 | 3.063 | 1.22 |
5/8 | HC212-36 | 4.78 |
| 212-37 | 2-5/16 | HC212-37 | 4.83 |
| 212-38 | 2-3/8 | HC212-38 | 4.76 |
| 212-39 | 2-7/16 | HC212-39 | 4.75 |
| HCP213 | 65 | 76.23 | 265 |
203 | 70 | 25 | 28 |
27 | 150 | 85.7 | 34.1 |
M20 | HC213 | P213 | 5.89 |
| 213-40 | 2-1/2 | 3 | 10-7/16 |
8 | 2-3/4 | 63/64 | 1-3/32 |
1-1/16 | 5-29/32 | 3.374 | 1.343 |
3/4 | HC213-40 | 6.00 |
| 213-41 | 2-9/16 | HC213-41 | 5.88 |
| HCP214 | 70 | 79.4 | 266 |
210 | 72 | 25 | 28 |
27 | 156 | 85.7 | 34.1 |
M20 | HC214 | P214 | 6.27 |
| 214-42 | 2-5/8 | 3-1/8 | 10-15/32 |
8-17/64 | 2-27/32 | 63/64 | 1-3/32 |
1-1/16 | 6-9/64 | 3.374 | 1.343 |
3/4 | HC214-42 | 6.21 |
| 214-43 | 2-11/16 | HC214-43 | 6.40 |
| 214-44 | 2-3/4 | HC214-44 | 6.28 |
| HCP215 | 75 | 82.6 | 275 |
217 | 74 | 25 | 28 |
28 | 162 | 92.1 | 37.3 |
M20 | HC215 | P215 | 6.93 |
| 215-45 | 2-13/16 | 3-1/4 | 10-53/64 |
8-35/64 | 2-29/32 | 63/64 | 1-3/32 |
1-3/32 | 6-3/8 | 3.626 | 1.469 |
3/4 | HC215-45 | 7.23 |
| 215-46 | 2-7/8 | HC215-46 | 7.10 |
| 215-47 | 2-15/16 | HC215-47 | 6.97 |
| 215-48 | 3 | HC215-48 | 6.83 |
| HCP216 | 80 | 88.9 | 292 |
232 | 78 | 25 | 28 |
30 | 174 | 95.2 | 37.3 |
M20 | HC216 | P216 | 8.54 |
| 216-49 | 3-1/16 | 3-1/2 | 11-1/2 |
9-1/8 | 3-1/16 | 63/64 | 1-3/32 |
1-3/16 | 6-27/32 | 3.748 | 1.469 |
3/4 | HC216-49 | 8.74 |
| 216-50 | 3-1/8 | HC216-50 | 8.60 |
| 216-51 | 3-3/16 | HC216-51 | 8.45 |
| HCP217 | 85 | 95.2 | 310 |
247 | 83 | 25 | 28 |
32 | 185 | 73.8 | 23.4 |
M20 | HC217 | P217 | 9.81 |
| 217-52 | 3-1/4 | 3-3/4 | 12-13/64 |
9-23/32 | 3-17/64 | 63/64 | 1-3/32 |
1-1/4 | 7-9/32 | 2.906 | 0.921 |
3/4 | HC217-52 | 10.00 |
| 217-53 | 3-5/16 | HC217-53 | 9.88 |
| 217-55 | 3-7/16 | HC217-55 | 9.63 |
| HCP218 | 90 | 101.64 | 327 |
262 | 88 | 27 | 30 |
33 | 198 | 72.6 | 24.5 |
M22 | HC218 | P218 | 11.41 |
| 218-56 | 3-1/2 | 4 | 12-7/8 |
10-5/16 | 3-15/32 | 1-1/16 | 1-3/16 |
1-19/64 | 7-51/64 | 2.858 | 0.965 |
7/8 | HC218-56 | 11.50 |
| Unit NO. | Dimensions(mm/in.) | Bolt Size
mm/in. |
Bearing No | Housing
No. | Weight
(kg) |
|---|
| d | h | a |
e | b | S1 |
S2 | 9 | W |
B1 | n |
|---|
| HCP204 | 20 | 33.3 | 127 |
95 | 38 | 13 | 19 |
14 | 65 | 43.7 | 17.1 |
M10 | HC204 | P204 | 0.70 |
| 204-12 | 3/4 | 1-5/16 | 5 |
3-3/4 | 1-1/2 | 1/2 | 3/4 |
9/16 | 2-9/16 | 1.720 | 0.673 |
3/8 | HC204-12 | 0.70 |
| HCP205 | 25 | 36.5 | 140 |
105 | 38 | 13 | 19 |
15 | 71 | 44.4 | 17.5 |
M10 | HC205 | P205 | 0.81 |
| 205-13 | 13/16 | 1-7/16 | 5-1/2 |
4-1/8 | 1-1/2 | 1/2 | 3/4 |
19/32 | 2-25/32 | 1.748 | 0.689 |
3/8 | HC205-13 | 0.86 |
| 205-14 | 7/8 | HC205-14 | 0.85 |
| 205-15 | 15/16 | HC205-15 | 0.83 |
| 205-16 | 1 | HC205-16 | 0.81 |
| HCP206 | 30 | 42.9 | 160 |
121 | 44 | 17 | 20 |
17 | 84 | 48.4 | 18.3 |
M14 | HC206 | P206 | 1.27 |
| 206-17 | 1-1/16 | 1-11/16 | 6-19/64 |
4-3/4 | 1-47/64 | 43/64 | 25/32 |
21/32 | 3-5/16 | 1.906 | 0.720 |
1/2 | HC206-17 | 1.32 |
| 206-18 | 1-1/8 | HC206-18 | 1.29 |
| 206-19 | 1-3/16 | HC206-19 | 1.27 |
| 206-20 | 1-1/4 | HC206-20 | 1.24 |
| HCP207 | 35 | 47.6 | 167 |
127 | 48 | 17 | 20 |
18 | 93 | 51.1 | 18.8 |
M14 | HC207 | P207 | 160 |
| 207-20 | 1-1/4 | 1-7/8 | 6-9/16 |
5 | 1-7/8 | 43/64 | 25/32 |
45/64 | 3-21/32 | 2.012 | 0.740 |
1/2 | HC207-20 | 1.67 |
| 207-21 | 1-5/16 | HC207-21 | 163 |
| 207-22 | 1-3/8 | HC207-22 | 1.60 |
| 207-23 | 1-7/16 | HC207-23 | 1.58 |
| HCP208 | 40 | 49.2 | 184 |
137 | 54 | 17 | 20 |
18 | 100 | 56.3 | 21.4 |
M14 | HC208 | P208 | 1.99 |
| 208-24 | 1-1/2 | 1-15/16 | 7-1/4 |
5-13/32 | 2-1/8 | 43/64 | 25/32 |
45/64 | 3-15/16 | 2.217 | 0.843 |
1/2 | HC208-24 | 2,04 |
| 208-25 | 1-9/16 | HC208-25 | 2.00 |
| HCP209 | 45 | 54.0 | 190 |
146 | 54 | 17 | 20 |
20 | 106 | 56.3 | 21.4 |
M14 | HC209 | P209 | 2.19 |
| 209-26 | 1-5/8 | 2-1/8 | 7-15/32 |
5-3/4 | 2-1/8 | 43/64 | 25/32 |
25/32 | 4-11/64 | 2.217 | 0.843 |
1/2 | HC209-26 | 2.30 |
| 209-27 | 1-11/16 | HC209-27 | 2.25 |
| 209-28 | 1-3/4 | HC209-28 | 2.21 |
| HCP210 | 50 | 57.2 | 206 |
159 | 60 | 20 | 23 |
21 | 113 | 62.7 | 24.6 |
M16 | HC210 | P210 | 2.80 |
| 210-29 | 1-13/16 | 2-1/4 | 8-1/8 |
6-1/4 | 2-3/8 | 25/32 | 29/32 |
53/64 | 4-29/64 | 2.469 | 0.969 |
5/8 | HC210-29 | 2.95 |
| 210-30 | 1-7/8 | HC210-30 | 2.89 |
| 210-31 | 1-15/16 | HC210-31 | 2.83 |
| 210-32 | 2 | HC210-32 | 2.77 |
| HCP211 | 55 | 63.5 | 219 |
171 | 60 | 20 | 23 |
23 | 125 | 71.4 | 27.8 |
M16 | HC211 | P211 | 3.50 |
| 211-32 | 2 | 2-1/2 | 8-5/8 |
6-47/64 | 2-3/8 | 25/32 | 29/32 |
29/32 | 4-59/64 | 2.811 | 1.094 |
5/8 | HC211-32 | 3.80 |
| 211-33 | 2-1/16 | HC211-33 | 3.62 |
| 211-34 | 2-1/8 | HC211-34 | 3.55 |
| 211-35 | 2-3/16 | HC211-35 | 3.47 |
| HCP212 | 60 | 69.8 | 241 |
184 | 70 | 20 | 23 |
25 | 138 | 77.8 | 31.0 |
M16 | HC212 | P212 | 4.76 |
| 212-36 | 2-1/4 | 2-3/4 | 9-1/2 |
7-1/4 | 2-3/4 | 25/32 | 29/32 |
63/64 | 5-7/16 | 3.063 | 1.22 |
5/8 | HC212-36 | 4.78 |
| 212-37 | 2-5/16 | HC212-37 | 4.83 |
| 212-38 | 2-3/8 | HC212-38 | 4.76 |
| 212-39 | 2-7/16 | HC212-39 | 4.75 |
| HCP213 | 65 | 76.23 | 265 |
203 | 70 | 25 | 28 |
27 | 150 | 85.7 | 34.1 |
M20 | HC213 | P213 | 5.89 |
| 213-40 | 2-1/2 | 3 | 10-7/16 |
8 | 2-3/4 | 63/64 | 1-3/32 |
1-1/16 | 5-29/32 | 3.374 | 1.343 |
3/4 | HC213-40 | 6.00 |
| 213-41 | 2-9/16 | HC213-41 | 5.88 |
| HCP214 | 70 | 79.4 | 266 |
210 | 72 | 25 | 28 |
27 | 156 | 85.7 | 34.1 |
M20 | HC214 | P214 | 6.27 |
| 214-42 | 2-5/8 | 3-1/8 | 10-15/32 |
8-17/64 | 2-27/32 | 63/64 | 1-3/32 |
1-1/16 | 6-9/64 | 3.374 | 1.343 |
3/4 | HC214-42 | 6.21 |
| 214-43 | 2-11/16 | HC214-43 | 6.40 |
| 214-44 | 2-3/4 | HC214-44 | 6.28 |
| HCP215 | 75 | 82.6 | 275 |
217 | 74 | 25 | 28 |
28 | 162 | 92.1 | 37.3 |
M20 | HC215 | P215 | 6.93 |
| 215-45 | 2-13/16 | 3-1/4 | 10-53/64 |
8-35/64 | 2-29/32 | 63/64 | 1-3/32 |
1-3/32 | 6-3/8 | 3.626 | 1.469 |
3/4 | HC215-45 | 7.23 |
| 215-46 | 2-7/8 | HC215-46 | 7.10 |
| 215-47 | 2-15/16 | HC215-47 | 6.97 |
| 215-48 | 3 | HC215-48 | 6.83 |
| HCP216 | 80 | 88.9 | 292 |
232 | 78 | 25 | 28 |
30 | 174 | 95.2 | 37.3 |
M20 | HC216 | P216 | 8.54 |
| 216-49 | 3-1/16 | 3-1/2 | 11-1/2 |
9-1/8 | 3-1/16 | 63/64 | 1-3/32 |
1-3/16 | 6-27/32 | 3.748 | 1.469 |
3/4 | HC216-49 | 8.74 |
| 216-50 | 3-1/8 | HC216-50 | 8.60 |
| 216-51 | 3-3/16 | HC216-51 | 8.45 |
| HCP217 | 85 | 95.2 | 310 |
247 | 83 | 25 | 28 |
32 | 185 | 73.8 | 23.4 |
M20 | HC217 | P217 | 9.81 |
| 217-52 | 3-1/4 | 3-3/4 | 12-13/64 |
9-23/32 | 3-17/64 | 63/64 | 1-3/32 |
1-1/4 | 7-9/32 | 2.906 | 0.921 |
3/4 | HC217-52 | 10.00 |
| 217-53 | 3-5/16 | HC217-53 | 9.88 |
| 217-55 | 3-7/16 | HC217-55 | 9.63 |
| HCP218 | 90 | 101.64 | 327 |
262 | 88 | 27 | 30 |
33 | 198 | 72.6 | 24.5 |
M22 | HC218 | P218 | 11.41 |
| 218-56 | 3-1/2 | 4 | 12-7/8 |
10-5/16 | 3-15/32 | 1-1/16 | 1-3/16 |
1-19/64 | 7-51/64 | 2.858 | 0.965 |
7/8 | HC218-56 | 11.50 |
