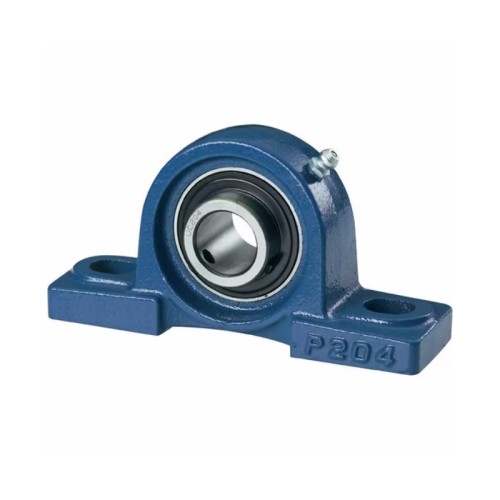

UCP200 Pillow Block Bearing Units

Model: UCP 200

Item specifics

Bearing Insert: UC2 Series

Housing Type: P200 Pillow Block

Material: Cast Iron

Review

Description

The UCP200 pillow block bearing unit features an eccentric locking collar, making it ideal for applications that involve reversing motion or vibration. It provides reliable shaft locking, stable performance, and easy installation for a wide range of industrial machinery.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

UCP200 Pillow Block Bearing Units Dimensions

Unit NO.	Dimensions(mm/in.)												Bolt Size mm/in.	Beaing No.	Housing No.	Weight (kg)
Unit NO.	d	h	a	e	b	S1	S2	g	W	t	B	n	Bolt Size mm/in.	Beaing No.	Housing No.	Weight (kg)
UCP201	12	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC201	P201	0.65
201-8	1/2	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1-3/4	1.2205	0.500	3/8	UC201-8	P201	0.64
UCP202	15	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC202	P202	0.64
202-9	9/16	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1-3/4	1.2205	0.500	3/8	UC202-9		0.64
202-10	5/8	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1-3/4	1.2205	0.500	3/8	UC202-10		0.64
UCP203	17	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC203	P203	0.63
203-11	11/16	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1-3/4	1.2205	0.500	3/8	UC203-11	P203	0.62
UCP204	20	33.3	127	95	38	13	19	14	65	44.5	31.0	12.7	M10	UC204	P204	0.64
204-12	3/4	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1-3/4	1.2205	0.500	3/8	UC204-12	P204	0.64
UCP205	25	36.5	140	105	38	13	19	15	71	48	34.1	14.3	M10	UC205	P205	0.76
205-13	13/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-13		0.80
205-14	7/8													UC205-14		0.79
205-15	15/16													UC205-15		0.77
205-16	1													UC205-16		0.76
UCP206	30	42.9	160	121	44	17	20	17	84	53	38.1	15.9	M14	UC206	P206	120
206-17	1-1/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-17		1.21
206-18	1-1/8													UC206-18		1.22
206-19	1-3/16													UC206-19		1.20
206-20	1-1/4													UC206-20		1.19
UCP207	35	47.6	167	127	48	17	20	18	93	59.5	42.9	17.5	M14	UC207	P207	1.46
207-20	1-1/4	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45./64	3-21/32	2-11/32	16890	0.689	1/2	UC207-20		1.53
207-21	1-5/16													UC207-21		1.50
207-22	-3/8													UC207-22		1.47
207-23	1-7/16													UC207-23		1.44
UCP208	40	49.2	184	137	54	17	20	18	100	69	49.2	19	M14	UC208	P208	1.86
208-24	1-1/2	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.9370	0.748	1/2	UC208-24		1.90
208-25	1-9/16	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.9370	0.748	1/2	UC208-25		1.87
UCP209	45	54.0	190	146	54	17	20	20	106	69	49.2	19	M14	UC209	P209	2.06
209-26	1-5/8	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.9370	0.748	1/2	UC209-26		2.16
209-27	1-11/16													UC209-27		2.12
209-28	1-3/4													UC209-28		2.08
UCP210	50	57.2	206	159	60	20	23	21	113	74.5	51.6	19.0	M16	UC210	P210	2.61
210-29	1-13/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-29		2.73
210-30	1-7/8													UC210-30		2.68
210-31	1-15/16													UC210-31		2.63
210-32	2													UC210-32		2.59
UCP211	55	63.5	219	171	60	20	23	23	125	76	55.6	22.2	M16	UC211	P211	3.23
211-32	2	2-1/2	8-5/8	6-47/64	37323	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-32		3.38
211-33	2-1/16													UC211-33		3.32
211-34	2-1/8													UC211-34		3.28
211-35	2-3/16													UC211-35		3.21
UCP212	60	69.8	241	184	70	20	23	25	138	89	65.1	25.4	M16	UC212	P212	4.40
212-36	2-1/4	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-36		4.57
212-37	2-5/16													UC212-37		4.49
212-38	2-3/8													UC212-38		4.42
212-39	2-7/16													UC212-39		4.35
UCP213	65	76.2	265	2038	70	25	28	27	150	89	65.1	25.4	M20	UC213	P213	5.35
213-40	2-1/2	3	10-7/16		2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.5630	1.000	3/4	UC213-40		5.44
213-41	2-9/16	3	10-7/16		2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.5630	1.000	3/4	UC213-41		5.35
UCP214	70	79.4	266	210	72	25	28	27	156	98	74.6	30.2	M20	UC214	P214	5.86
214-42	2-5/8	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3-55/64	2.9370	1.189	3/4	UC214-42		6.07
214-43	2-11/16													UC214-43		5.97
214-44	2-3/4													UC214-44		5.87
UCP215	75	82.6	275	217	74	25	28	2B	162	99	77.8	33.3	M20	UC215	P215	6.45
215-45	2-13/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-45		6.45
215-46	2-7/8													UC215-46		6.70
215-47	2-15/16													UC215-47		6.59
215-48	3													UC215-48		6.39
UCP216	80	88.9	292	232	78	25	28	30	174	109	82.6	33.3	M20	UC216	P216	7.86
216-49	3-1/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.2520	1.311	3/4	UC216-49		8.04
216-50	3-1/8													UC216-50		7.91
216-51	3-3/16													UC216-51		7.78
UCP217	85	95.2	310	247	83	25	28	32	185	113.2	85.7	34.1	M20	UC217	P217	9.56
217-52	3-1/4	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.3740	1.343	3/4	UC217-52		9.68
217-53	3-5/16													UC217-53		9.64
217-55	3-7/16													UC217-55		9.35
UCP218	90	101.6	327	262	88	27	30	33	198	123	96.0	39.7	M22	UC218	P218	11.59
218-56	3-1/2	4	12-7/8	10-5/16	3-15/32	1-1/16	1-3/16	1-19/64	7-51/64	4-27/32	3.7795	1.5630	7/8	UC218-56	P218	11.70
UCP220	100	115.0	380	308	95	30	36	40	225		108.0	42.0	M24	UC220	P220	16
220-64	4	4-17/32	14-61/64	12-1/8	3-47/64	1-3/16	1-27/64	1-37/64	8-55/64		4.2520	1.6535	15/16	UC220-64	P220	16

recommend

UCLP200 Pillow Block Bearing Units

Model : UCP 200

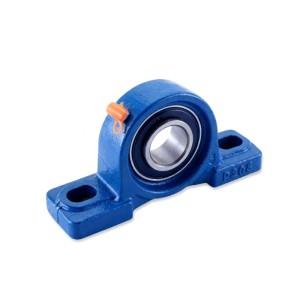

UKP200 Pillow Block Bearing Units
