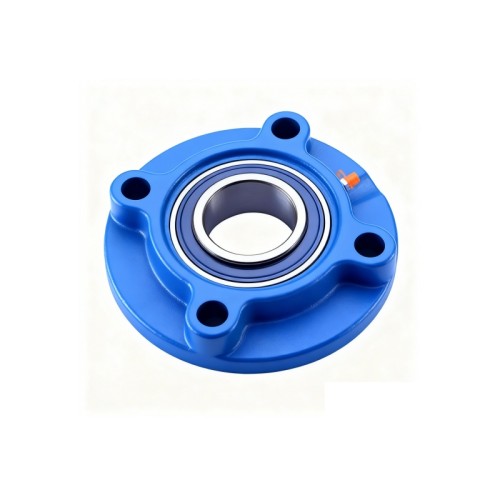

UKFC200 Flanged Cartridge Bearing Units

Model: UKFC 200

Item specifics

Bearing Insert: UK2 Series

Housing Type: 4 bolts round flange housing FC200

Material: Cast Iron

Review

Description

Flange Cartridge Bearing Units are compact,ready-to-mount bearing assemblies designed for applications that require strong, face-mounted support in a minimal footprint. These units integrate a high-quality deep-groove ball bearing insert with a cylindrical or square cartridge-style housing, creating a rigid structure that is easy to install and highly stable during operation.

Flange Cartridge Units are widely used in conveyors, agricultural machinery, material-handling systems, fans, and general industrial equipment where a compact mounting style and strong load support are required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

UKFC200 Flange Cartridge Units Dimensions

UCFC200 Flange Cartridge Units Dimensions

Unit NO.	Dimensions(mm/in.)													Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	p	(e)	i	s	j	k	g	f	Z	t	B1	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
UKFC205;H2305	20	115	90	63.6	10	12	6	7	21	70	29.5	35	35	M10	UK205;H2305	FC205	0.93
205;HE2305	3/4	4-17/32	3-35/64	2-1/2	15/64	25/32	1564	9/32	53/64	2.7559	1-5/32	1-3/8	1.378	3/8	UK205;HE2305	FC205	0.93
UKFC206:H2306	25	125	100	70.7	10	12	8	8	23	80	31	38	38	M10	UK206;H2306	FC206	1.24
206;HS2306	7/8	4-59/64	3-15/16	2-25/32	25/64	15/32	5/16	5/16	29/32	3.1496	1-7/32	1-1/2	1.496	3/8	UK206;HS2306
206;HE2306	1	4-59/64	3-15/16	2-25/32	25/64	15/32	5/16	5/16	29/32	3.1496	1-7/32	1-1/2	1.496	3/8	UK206;HE2306
UKFC207;H2307	30	135	110	77.8	11	14	8	9	26	90	34.5	41	43	M12	UK207;H2307	FC207	1.6
207;HS2307	1-1/8	5-5/16	4-21/64	3-1/16	7/16	35/64	5/16	23/64	1-1/32	3.5433	1-23/64	1-39/64	1.693	7/16	UK207;HS2307	FC207	1.6
UKFC208:H2308	35	145	120	84.8	11	14	10	9	26	100	36.5	46	46	M12	UK208;H230B	FC208	1.92
208;HE2308	1-1/4	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-7/16	1-13/16	1.811	7/16	UK208;HE2308
208;HS2308	1-3/8	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-7/16	1-13/16	1.811	7/16	UK208;HS2308
UKFC209:H2309	40	160	132	93.3	10	16	12	14	26	105	36.5	45	50	M14	UK209;H2309	FC209	2.65
209;HA2309	1-7/16	6-19/64	5-13/64	3-43/64	25/64	5/8	15/32	35/64	1-1/32	4.1339	1-7/16	1-49/64	1.969	1/2	UK209;HA2309
209;HE2309	1-1/2														UK209;HE2309
209;HS2309	1-5/8														UK209;HS2309
UKFC210:H2310	45	165	138	97.6	10	16	12	14	28	110	38	47	55	M14	UK210;H2310	FC210	2.96
210;HS2310	1-5/8	6-1/2	5-7/16	3-27/32	25/64	5/8	15/32	35/64	1-7/64	4.3307	1-1/2	1-27/32	2.165	1/2	UK210;HS2310
210;HA2310	1-11/16														UK210;HA2310
210;HE2310	1-3/4														UK210;HE2310
UKFC211:H2311	50	185	150	106.1	13	19	12	15	31	125	41.5	51	59	M16	UK211;H2311	FC211	4.02
211;HS2311	1-7/8	7-9/32	5-29/32	4-3/16	33/64	3/4	15/32	19/32	1-7/32	4.9213	1-43/64	2-1/64	2.323	5/8	UK211;HS2311
211;HA2311	1-15/16														UK211;HA2311
211;HE2311	2														UK211;HE2311
UKFC212;H2312	55	195	160	113.1	17	19	12	15	36	135	49	62	62	M16	UK212;H2312	FC212	4.77
212;HS2312	2-1/8	7-11/16	6-19/64	4-29/64	43/64	314	1532	19/52	1-27/64	5.3150	1-59/64	2-7/16	2.441	5/8	UK212;HS2312	FC212	4.77
UKFC213:H2313	60	205	170	120.2	16	19	14	15	36	145	50	61	65	M16	UK213;H2313	FC213	5.41
213;HA2313	2-3/16	8-5/64	6-11/16	4-47/64	518	3/4	35/64	19/32	1-27/64	5.5118	1-31/32	2-13/32	2.559	5/8	UK213;HA2313
213;HE2313	2-1/4														UK213;HE2313
213;HS2313	2-3/8														UK213;HS2313
UKFC215:H2315	65	220	184	130.1	18	19	16	18	40	160	55	68	73	M16	UK215;H2315	FC215	7.25
215;HA2315	2-7/16	8-21/32	7-1/4	5-1/8	23/32	3/4	5/8	23/32	1-3764	6.2992	2-11/64	2-43/64	2.874	5/8	UK215;HA2315
215;HE2315	2-1/2	8-21/32	7-1/4	5-1/8	23/32	3/4	5/8	23/32	1-3764	6.2992	2-11/64	2-43/64	2.874	5/8	UK215;HE2315
UKFC216:H2316	70	240	200	141.4	18	23	16	18	42	170	57.5	73	78	M20	UK216;H2316	FC216	8.9
216;HA2316	2-11/16	9-29/64	7-78	5-9/16	23/32	29/32	5/8	23/32	1-21/32	6.6929	2-17/64	2-7/8	3.071	3/4	UK216;HA2316
216;HE2316	2-3/4	9-29/64	7-78	5-9/16	23/32	29/32	5/8	23/32	1-21/32	6.6929	2-17/64	2-7/8	3.071	3/4	UK216;HE2316
UKFC217:H2317	75	250	208	147.1	18	23	18	20	45	180	59	75	82	M20	UK217;H2317	FC217	10.6
217;HA2317	2-15/16	9-27/32	8-3/16	5.51/64	23/32	29/32	23/32	25/32	1-25/32	7.0866	2-21/64	2-61/64	3.228	3/4	UK217;HA2317
217;HE2317	3	9-27/32	8-3/16	5.51/64	23/32	29/32	23/32	25/32	1-25/32	7.0866	2-21/64	2-61/64	3.228	3/4	UK217;HE2317
UKFC218;H2318	80	265	220.0	155.5	22	23	18	20	50	190	63.5	84	86	M20	UK218;H2318	FC218	12.54
218;HA2318	3-3/16	10-7/16	8-21/32	6-1/8	55/64	29/32	23/32	25/32	1-31/32	7.4803	2-1/2	3-5/16	3.386	3/4	UK218;HA2318	FC218	12.54

recommend

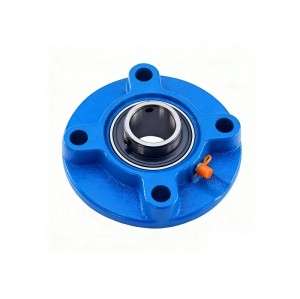

UCFC200 Flanged Cartridge Bearing Units

Model : UKFC 200

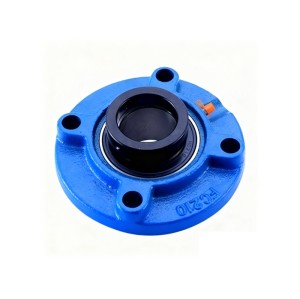

HCFC200 Flanged Cartridge Bearing Units
