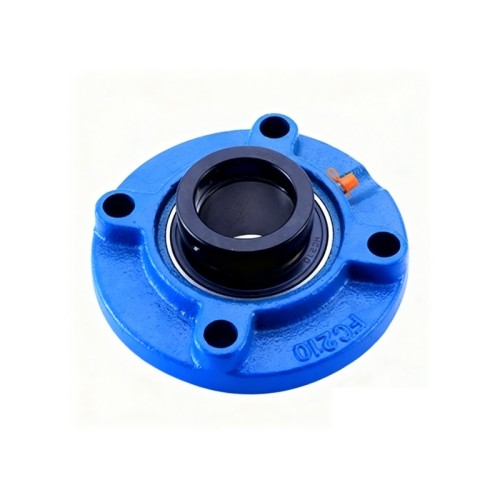

HCFC200 Flanged Cartridge Bearing Units

Model: HCFC 200

Item specifics

Bearing Insert: HC2 Series

Housing Type: 4 bolts round flange housing FC200

Material: Cast Iron

Review

Description

Flange Cartridge Bearing Units are compact,ready-to-mount bearing assemblies designed for applications that require strong, face-mounted support in a minimal footprint. These units integrate a high-quality deep-groove ball bearing insert with a cylindrical or square cartridge-style housing, creating a rigid structure that is easy to install and highly stable during operation.

Flange Cartridge Units are widely used in conveyors, agricultural machinery, material-handling systems, fans, and general industrial equipment where a compact mounting style and strong load support are required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

HCFC200 Flange Cartridge Units Dimensions

Unit NO.	Dimensions(mm/in.)													Bolt Size mm/in.	Bearing No	Housing No.	Weight (kg)
Unit NO.	d	a	P	(e)	i	s	j	k	g	f	Z	B1	n	Bolt Size mm/in.	Bearing No	Housing No.	Weight (kg)
HCFC204	20	100	78	55.1	10	12	5	7	20.5	62	36.6	43.7	17.1	M10	HC204	FC204	0.72
204-12	3/4	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	9/32	13/16	2.4409	1-7/16	1.720	0.673	3/8	HC204-12	FC204	0.72
HCFC205	25	115	90	63.6	10	12	6	7	21	70	36.9	44.4	17.5	M10	HC205	FC205	0.94
205-13	13/16	4-17/32	3-35/64	2-1/2	25/64	15/32	15/64	9/32	53/64	2.7559	1-29/64	1.748	0.689	3/8	HC205-13		0.99
205-14	7/8														HC205-14		0.98
205-15	15/16														HC205-15		0.96
205-16	1														HC205-16		0.94
HCFC206	30	125	100	70.7	10	12	8	8	23	80	40.1	48.4	18.3	M10	HC206	FC206	1.25
206-17	1-1/16	4-59/64	3-15/16	2-25/32	25/64	15/32	5/16	5/16	29/32	3.1496	1-3764	1.906	0.720	3/8	HC2D6-17		1.30
206-18	1-1/8														HC206-18		1.27
206-19	1-3/16														HC206-19		1.25
206-20	1-1/4														HC206-20		1.22
HCFC207	35	135	110	77.8	11	14	8	9	26	90	43.3	51.1	18.8	M12	HC207	FC207	1.67
207-20	1-1/4	5-5/16	4-21/64	3-1/16	7/16	35164	5/16	23/64	1-I/32	3.5433	1-45164	2.012	0.740	7/16	HC207-20		1.74
207-21	1-5/16														HC207-21		1.70
207-22	1-3/8														HC207-22		1.67
207-23	1-7/16														HC207-23		1.65
HCFC20B	40	145	120	84.8	11	14	10	9	26	100	45.9	56.3	21.4	M12	HC20B	FC208	1.98
20B-24	1-1/2	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-13/16	2.217	0.843	7/16	HC208-24		2.03
20B-25	1-9/16	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-13/16	2.217	0.843	7/16	HC208-25		1.99
HCFC209	45	160	132	93.3	10	16	12	14	26	105	44.9	56.3	21.4	M14	HC209	FC209	2.66
209-26	1-5/8	6-1964	5-13/64	3-43/64	25/64	518	15/32	35/64	1-1/32	4.1339	1-49/64	2.217	0.843	1/2	HC209-26		2.77
209-27	1-11/16														HC209-27		2.72
209-28	1-34														HC209-28		2.68
HCFC210	50	165	138	97.6	10	16	12	14	28	110	48.1	62.7	24.6	M14	HC210	FC210	2.97
210-29	1-13/16	6-1/2	5-7/16	3-27/32	25/64	5/8	15/32	35/64	1-7/64	4.3307	1-5764	2.469	0.969	1/2	HC210-29		3.12
210-30	1-7/8														HC210-30		3.06
210-31	1-15/16														HC210-31		3.00
210-32	2														HC210-32		2.94
HCFC211	55	185	150	106.1	13	19	12	15	31	125	56.6	71.4	27.8	M16	HC211	FC211	4.13
211-32	2	7-9/32	5-2932	4-3/16	33/64	3/4	15/32	19/32	1-7/32	4.9213	2-15/64	2.811	1.094	5/8	HC211-32		4.43
211-33	2-1/16														HC211-33		4.25
211-34	2-1/8														HC211-34		4.18
211-35	2-3/16														HC211-35		4.10
HCFC212	60	195	160	113.1	17	19	12	15	36	135	63.8	77.8	31.0	M16	HC212	FC212	5.01
212-36	2-1/4	7-11/16	6-19/64	4-29/64	43.64	3/4	15/32	19/32	1-27/64	5.3150	2-33/64	3.063	1.220	5/8	HC212-36		5.03
212-37	2-5/16														HC212-37		5.08
212-38	2-3/8														HC212-38		5.01
212-39	2-7/16														HC212-39		5.00
HCFC213	65	205	170	120.2	16	19	14	15	36	145	67.6	85.7	34.1	M16	HC213	FC213	5.84
213-40	2-1/2	8-5/64	6-11/16	4-47/64	518	3/4	35/64	19/32	1-27/64	5.5118	2-2/32	3.374	1.343	5/8	HC213-40		5.94
213-41	2-9/16	8-5/64	6-11/16	4-47/64	518	3/4	35/64	19/32	1-27/64	5.5118	2-2/32	3.374	1.343	5/8	HC213-41		5.83
HCFC214	70	215	177	125.1	17	19	14	18	40	150	68.6	85.7	34.1	M16	HC214	FC214	6.87
214-42	2-518	8-15/32	6-31/32	4-99764	43/64	3/4	3564	23/32	1-37/64	5.9055	2-4564	3.374	1.343	5/8	HC214-42		6.81
214-43	2-11/16														HC214-43		7.00
214-44	2-34														HC214-44		6.88
HCFC215	75	220	184	130.1	18	19	16	18	40	160	72.8	92.1	37.3	M16	HC215	FC215	7.34
215-45	2-13/16	8-21/32	7-1/4	5-1/8	23/32	3/4	518	23/32	1-37/64	6.2992	2-7/8	3.626	1.469	5/8	HC215-45		7.64
215-46	2-7/8														HC215-46		7.51
215-47	2-15/16														HC215-47		7.38
215-48	3														HC215-48		7.24
HCFC216	80	240	200	141.4	18	23	16	18	42	170	75.9	95.2	37.3	M20	HC216	FC216	9.15
216-49	3-1/16	9-29/64	7-7/8	5-9/16	23/32	29/32	518	23/32	1-21/32	6.6929	2-63/64	3.748	1.469	3/4	HC216-49		9.35
216-50	3-1/8														HC216-50		9.21
216-51	3-3/16														UC216-51		9.06
HCFC217	85	250	208	147.1	18	23	18	20	45	180	68.4	73.8	23.4	M20	HC217	FC217	10.43
217-52	3-1/4	9-27/32	8-3/16	5-51/64	23/32	29/32	23/32	25/32	1-25/32	7.0866	2-45164	2.905	0.921	3/4	HC217-52		10.62
217-53	3-5/16														HC217-53		10.50
217-55	3-7/16														HC217-55		10.25
HCFC218	90	265	220	155.5	22	23	18	20	50	190	70.1	72.6	24.5	M20	HC218	FC218	12.06
218-56	3-1/2	10-7/16	8-21/32	6-1/8	55/64	29/32	23/32	25/32	1-31/32	7.4803	2-3/4	2.858	0.964	3/4	HC218-56	FC218	12.15
