ANSI D50B Sprocket With QD Bushing
ANSI D50B Sprocket With QD Bushing
ANSI D50B Sprocket With QD Bushing

ANSI D50B Sprocket With QD Bushing

Model
50B Sprockets

Item specifics

Material
Carbon Steel
Color
Black
Surface Treatment
Blackening/Galvanizing/Phosphating
Accuracy
Precision teeth for optimum performance
Quality
Superior ANSI Sprocket
Interchangeability
Directly interchangeable with other brands

Review

Description

About D50B Sprockets with QD Bushings

D50B sprockets with QD bushings are designed to meet ANSI standards, it features a Quick Detachable (QD) Taper Lock bushing, which allows for easy installation and removal without damaging the shaft or sprocket. Their compatibility with standard chains and flexibility in shaft mounting make them a versatile and reliable choice for engineers and technicians.


For a quotation or other information on #50B sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket

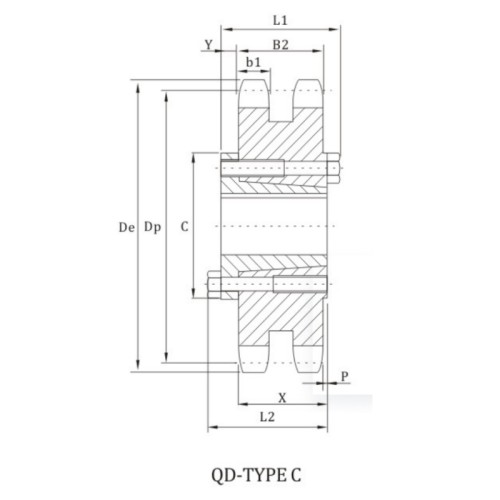

D50B sprocket with qd bushings dimension chart

50B-2 Sprocket with QD Bushings Technical Data

Pitch
5/8"
Roller φ
0.400"
No.
Teeth		Sprocket SizeBushing Type DeDpType Max
Bore		L1L2 CYP XB1B2 Weight(Approx)
With HubRim Only
36D50SK36SK7.520  7.171 C2 5/82 1/8 2 1/83 7/8 5/813
/64		 1 1/40.3321.04511.08  9.08
42D50SK42SK8.720  8.363 C2 5/82 1/8 2 1/83 7/8 5/813
/64		 1 1/40.3321.04515.16  13.16
48D50SK48SK9.910  9.556 C2 5/82 1/8 2 1/83 7/8 5/813
/64		 1 1/40.3321.04519.90  17.90
52D50SF52SF10.710  10.351 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04524.26  21.26
54D50SF54SF11.110  10.749 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04526.18  23.18
60D50SF60SF12.300  11.942 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04532.12  29.12
68D50SF68SF13.890  13.533 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04541.16  38.16
72D50SF72SF14.690  14.329 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04546.28  43.26
76D50SF76SF15.490  15.124 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04547.00  44.00
84D50SF84SF17.080  16.715 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04548.89  45.88
95D50SF95SF19.270  18.903 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04561.80  58.88
102D50SF102SF20.660  20.295 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04569.02  66.02
112D50SF112SF22.650  22.285 C2 15/162 1/4 2 1/44 5/8 3/413
/64		 1 1/40.3321.04588.26  85.26
