ANSI DS50 Double-Single Sprockets

Model: 50 Double Single Sprockets

Item specifics

Material: Carbon Steel

Color: Black

Surface Treatment: Blackening/Galvanizing/Phosphating

Accuracy: Precision teeth for optimum performance

Quality: Superior ANSI Sprocket

Interchangeability: Directly interchangeable with other brands

Review

Description

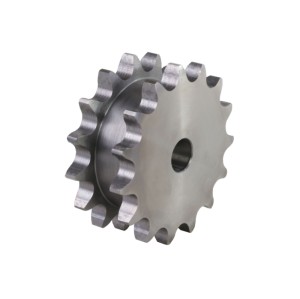

About DS50 Double Single Sprockets

The DS50 Double Single Sprocket is a high-performance sprocket designed for heavy-duty applications. It is compatible with #50 ANSI roller chains and is constructed from 1045 carbon steel for enhanced strength and durability. The sprocket has a plain bore, allowing custom machining to fit specific requirements.

For a quotation or other information on DS50 sprockets, please contact us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

DS50 double single sprocket dimension chart

DS50 Double Single Sprockets Technical Data

Pitch	5/8"
Roller φ	0.400"

No. Teeth	Sprocket Size	De	Dp	Type	D1		L	C	E	B1	Wt. (Approx.)
No. Teeth	Sprocket Size	De	Dp	Type	Min.	Max.	L	C	E	B1	Wt. (Approx.)
15	DS50A15	3.320	3.006	A	5/8	1 1/2	1 21/32	1 3/16	2 3/8	0.343	2.1
16	DS50A16	3.520	3.204	A	5/8	1 11/16	1 21/32	1 5/16	2 1/2	0.343	2.4
17	DS50A17	3.720	3.401	A	5/8	1 3/4	1 21/32	1 5/16	2 11/16	0.343	2.9
18	DS50A18	3.920	3.599	A	5/8	1 7/8	1 21/32	1 5/16	2 57/64	0.343	3.3
19	DS50A19	4.120	3.797	A	5/8	2 1/16	1 21/32	1 5/16	3 5/64	0.343	3.7
20	DS50A20	4.320	3.995	A	5/8	2 1/4	1 21/32	1 5/16	3 9/32	0.343	4.2
21	DS50A21	4.520	4.194	A	5/8	2 1/4	1 21/32	1 5/16	3 31/64	0.343	4.8
22	DS50A22	4.720	4.392	A	5/8	2 7/16	1 21/32	1 5/16	3 11/16	0.343	5.3
23	DS50A23	4.920	4.590	A	5/8	2 5/8	1 21/32	1 5/16	3 57/64	0.343	5.8
24	DS50A24	5.120	4.788	A	5/8	2 3/4	1 21/32	1 5/16	4 5/64	0.343	6.3
