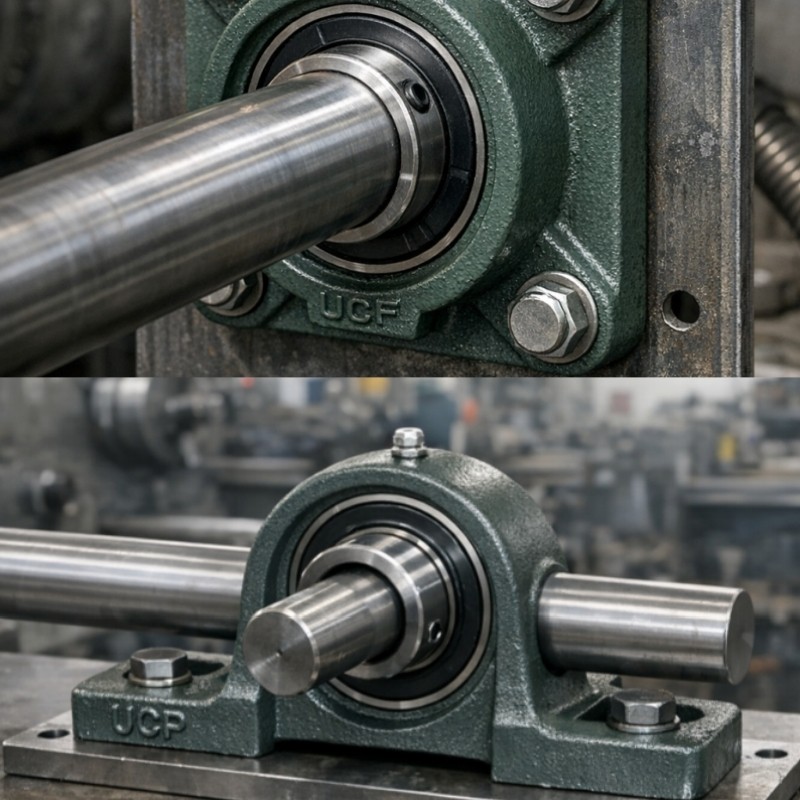

Pillow Block vs Flange Bearing: Which One Should You Choose?
- Share
- Issue Time
- Apr 1,2026
Summary
Compare pillow block and flange bearings in terms of structure, installation, and applications. Learn how to choose the right bearing unit for your needs.
What is a Pillow Block Bearing Unit?
A pillow block bearing is a mounted bearing unit that consists of a bearing insert installed inside a housing with a flat base. It is designed to be mounted on a horizontal surface, typically on machine frames or bases.
The most common type is the UCP200 series pillow block bearing, which is widely used in industrial machinery.
Key Features:
Mounted on flat surfaces (horizontal installation)
Easy to install and maintain
Suitable for long shaft support
Commonly used in conveyor systems
What is a Flange Bearing Unit?
A flange bearing is a mounted bearing unit where the housing is designed with a flange for mounting onto vertical surfaces such as walls or machine plates.
Common flange bearing types include:
Key Features:
Mounted on vertical or side surfaces
Compact structure
Better for shaft positioning
Suitable for limited space applications
Key Differences Between Pillow Block and Flange Bearing
Understanding the differences between pillow block and flange bearings is crucial for proper selection.
| Feature | Pillow Block Bearing | Flange Bearing |
| Mounting Surface | Horizontal surface | Vertical surface |
| Housing Design | Base-mounted | Flange-mounted |
| Load Direction | Mainly radial load | Radial + some axial load |
Installation | Mounted on base frame | Mounted on wall or plate |
Common Types | UCP | UCF, UCFL, UCFC |
Advantages of Pillow Block Bearing Units
Pillow block bearings are widely used due to their simplicity and versatility.
✔ Easy Installation
They can be easily mounted on flat surfaces using standard bolts.
✔ Strong Load Support
Ideal for supporting long shafts in conveyor systems and machinery.
✔ Easy Maintenance
Lubrication and replacement are straightforward.
✔ Cost-Effective
Lower installation complexity reduces overall cost.
☛ These advantages make pillow block bearings a preferred choice in conveyor systems, packaging machines, and general industrial equipment.
Advantages of Flange Bearing Units
Flange bearings are ideal for side mounting.
✔ Space-Saving Design
Perfect for applications with limited installation space.
✔ Flexible Mounting
Can be installed on vertical or angled surfaces.
✔ Better Shaft Positioning
Helps maintain shaft alignment in compact systems.
✔ Multiple Shape Options
Available in square, oval, and round flange designs.
☛ Flange bearings are commonly used in vertical machinery, agricultural equipment, and wall-mounted systems.
Application Comparison
The choice between pillow block and flange bearing units largely depends on the application:
For conveyor systems, pillow block bearing units are more suitable as they effectively support horizontal shafts, while flange bearing units are the better choice for vertical equipment due to their vertical mounting capability.
In agricultural machinery, both types are used depending on the machine structure and installation requirements, and for compact machines where space is limited, flange bearing units are preferred.
How to Choose Between Pillow Block and Flange Bearing Units
Selecting the right bearing unit is critical for performance and lifespan. Here are the key factors to consider:
1. Mounting Surface
Horizontal → Pillow Block Units
Vertical → Flange Bearing Units
2. Space Availability
Large space → Pillow Block Units
Limited space → Flange Bearing Units
3. Load Direction
Mainly radial load → Pillow Block Units
Combined load → Flange Bearing Units
4. Maintenance Requirements
Easy maintenance needed → Pillow Block Units
Compact design priority → Flange Bearing Units
If you are not sure which bearing units to choose, feel free to contact us for professional selection support.
Quick Inquiry Now
Need Technical Support for Your Application?
Both pillow block bearing units and flange bearing units play important roles in industrial applications. The right choice depends on your mounting conditions, load requirements, and available space.
Pillow block bearing units are ideal for horizontal installations and general machinery, while flange bearing units are better suited for vertical mounting and compact systems.
Explore our full range of mounted bearing units or contact our team today for customized solutions and competitive pricing.
