Model
AK-2 Sheave

Item specifics

Material
Cast Iron
Belt Type
A Section / 4L V-belts
Groove Quantity
Single Groove
Pilot Bore/ QD Bushed
Black Phosphate/ Rust Protection
Bore Type
Pilot Bore/ Finished Bore
Balance
Dynamically Balanced

Review

Description

About 2 Grooves AK Sheave

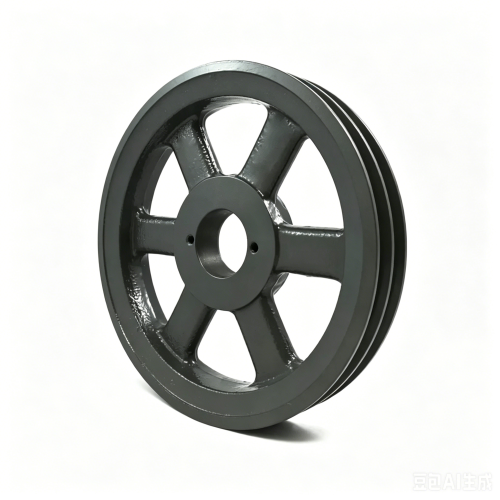

An AK Sheave is a classical V-belt pulley designed for use with A-section V-belts. In North American industrial markets, “AK” typically refers to a single groove A belt sheave with a finished or pilot bore structure commonly used in light-duty industrial transmission systems.


Compared with narrow V-belt sheaves such as 3V, 5V, and 8V, AK sheaves are more economical and widely used in standard industrial machinery requiring moderate horsepower transmission.


Due to their simple structure, stable performance, and broad compatibility, AK sheaves are commonly used in agricultural equipment, HVAC systems, pumps, fans, and general machinery.


For more information or to request a quote on our AK-2 Sheave, please don't hesitate to contact us.

AK-2 Sheave Dimension

CTS can supply a complete range of AK-2 sheave sizes for different transmission requirements.

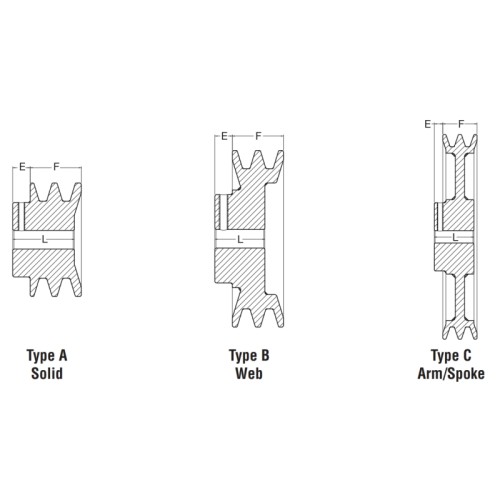

AK-2 Series Sheave Solid Web and Arm/Spoke Type
Part
Number		DiameterType Stock Finished Bores
Includes Keyway and Setscrew		FE L
Thru
Bore		Weight
   Ib
(Approx.)
 ODDatum
A(4L)Belts		Pitch
3L Belts
2AK20  21.81.46 A0.50.6250.75 1.375 0.46881.6563  0.8
2AK212.151.91.56 A0.50.6250.75 1.375 0.46881.6563  0.9
2AK222.2521.66 A0.50.6250.75 0.8751 1.375  0.4688 1.6563   1.1
2AK232.352.11.76 A0.6250.75 0.8751 1.375 0.46881.6563  1.2
2AK252.552.31.96 A0.6250.75 0.8751 1.375 0.46881.6563  1.4
2AK262.652.42.06 A0.6250.75 0.875 1.375 0.46881.6563  1.5
2AK272.752.52.16 A0.6250.75 0.8751 1.375 0.46881.6563  1.6
2AK282.852.62.26 A0.6250.75 0.875 1 1.375 0.46881.6563   1.7
2AK303.052.82.46 A0.5 0.6250.75 0.87511.125 1.375 0.46881.6563  2.0
2AK323.2532.66 A0.6250.75 0.87511.125 1.375 0.46881.6563  2.2
2AK343.453.22.86 A0.6250.75 0.87511.125 1.375 0.46881.6563  2.5
2AK393.753.53.16 B0.6250.75 0.87511.125 1.375 0.46881.3438  2.6
2AK413.95 3.73.36 B0.6250.75 0.87511.125 1.375  0.46881.3438   2.9
2AK444.2543.66 B0.6250.75 0.87511.125 1.375 0.46881.3438  3.3
2AK464.454.23.86  B0.625 0.87511.125 1.375 0.46881.3438  3.6
2AK494.754.54.16 B0.75 0.87511.125 1.3751.375 0.46881.3438  3.8
2AK514.954.74.36 B0.75 0.87511.125 1.3751.375 0.46881.3438  4.1
2AK545.25 54.66 B0.6250.75 0.87511.125 1.3751.375 0.46881.3438   4.3
2AK565.455.24.86 B0.6250.75 11.125 1.3751.375 0.46881.3438   4.5
2AK595.755.55.16 B 11.125 1.3751.375 0.46881.3438   4.9
2AK615.955.75.36 B0.75 0.875 11.125 1.3751.375 0.46881.3438  5.2
2AK646.2565.66 C0.75 11.125 1.18751.3751.43751.375 0.34381.5938  5.6
2AK747.25 7 6.66  C0.75  11.125 1.18751.3751.43751.375 0.34381.5938   6.5
2AK848.258 7.66  C0.75 0.9375 11.125 1.3751.43751.375 0.34381.5938  7.2
2AK949.259 8.66  C0.75 0.875 11.125 1.1875 1.3751.43751.375 0.34381.5938  8.0
2AK10410.25109.66 C0.75  0.9375 1 1.18751.43751.375 0.34381.5938  9.0
2AK11411.251110.66 C 1 1.18751.375 1.43751.375 0.34381.5938  9.7
2AK12412.2512 11.66  C 1 1.18751.43751.375 0.34381.5938  10.5
2AK13413.251312.66 C 1.18751.43751.375 0.34381.5938  12.7
2AK14414.251413.66 C 1 1.43751.375 0.34381.5938  13.1
2AK15415.25 15 14.66  C 1.1875 1.4375 1.375  0.3438 1.5938   14.3
2AK18418.251817.66 C 1.18751.4375 1.375  0.3438 1.5938   17.1

Additional sizes and customized dimensions are available according to customer requirements.

Bore & Mounting Options

CTS offers different bore configurations for various shaft installation systems.

Pilot Bore AK-2 Sheave
Suitable for customers requiring custom bore machining and keyway processing.

Finished Bore AK-2 Sheave
Supplied with finished bore and keyway for direct installation.
