Model
AK-1 Sheave

Item specifics

Material
Cast Iron
Belt Type
A Section / 4L V-belts
Groove Quantity
1 Groove
Pilot Bore/ QD Bushed
Black Phosphate/ Rust Protection
Bore Type
Pilot Bore/ Finished Bore
Balance
Dynamically Balanced

Review

Description

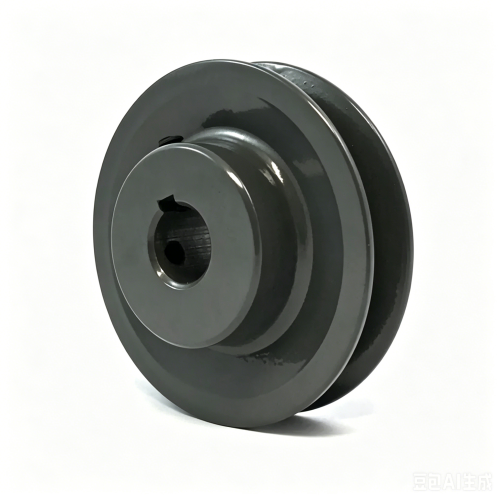

About 1 Groove AK Sheave

An AK Sheave is a classical V-belt pulley designed for use with A-section V-belts. In North American industrial markets, “AK” typically refers to a single groove A belt sheave with a finished or pilot bore structure commonly used in light-duty industrial transmission systems.


Compared with narrow V-belt sheaves such as 3V, 5V, and 8V, AK sheaves are more economical and widely used in standard industrial machinery requiring moderate horsepower transmission.


Due to their simple structure, stable performance, and broad compatibility, AK sheaves are commonly used in agricultural equipment, HVAC systems, pumps, fans, and general machinery.


For more information or to request a quote on our AK-1 Sheave, please don't hesitate to contact us.

AK-1 Sheave Dimension

CTS can supply a complete range of AK-1 sheave sizes for different transmission requirements.

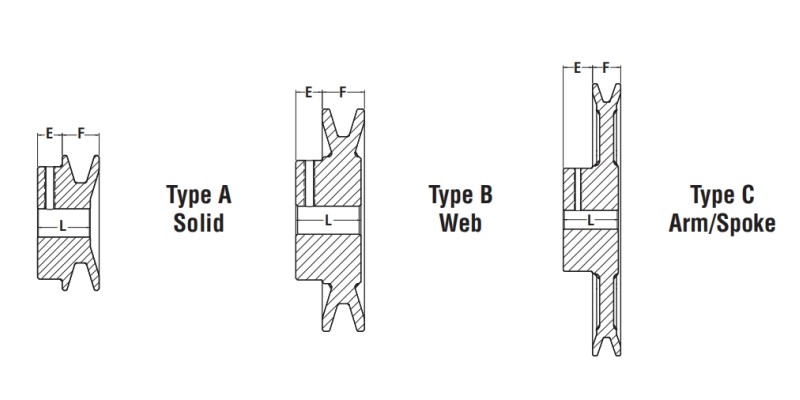

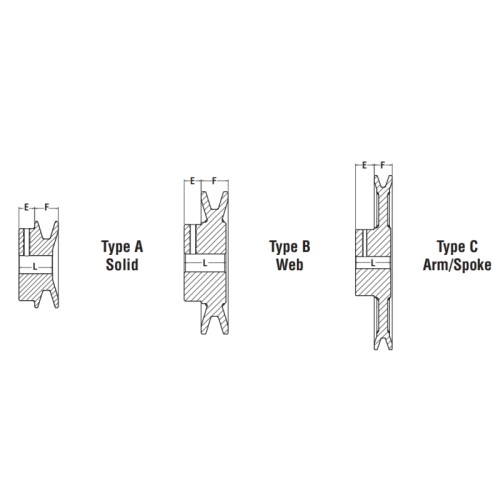

3V QD Sheave Type A B C D E Drawing
Part
Number		DiameterType Stock Finished Bores
Includes Keyway and Setscrew		FE L
Thru
Bore		Weight
   Ib
(Approx.)
ODDatum
A(4L)Belts		Pitch
3L Belts
AK151.551.3- A0.50.625 0.65630.43750.4063  0.3
AK171.751.51.16 A0.50.625 0.65630.43750.0625  0.3
AK191.951.71.36 A0.50.6250.75 0.875  0.65630.43750.0625  0.5
AK2021.81.46 A0.50.6250.75 0.65630.43750.0625  0.5
AK212.11.901.56 A0.50.6250.75 0.65630.43750.0625  0.5
AK222.221.66 A0.50.6250.75 0.875 0.65630.43750.0625  0.6
AK232.32.11.76 A0.50.6250.75 0.65630.43750.0625  0.6
AK242.42.21.86 A0.50.6250.75 0.8751  0.65630.43750.0625  0.6
AK252.52.31.96 B0.50.6250.75 0.875 0.65630.43750.0625  0.7
AK262.62.42.06 B0.50.6250.75 0.65630.43750.0625  0.7
AK272.72.52.16 B0.50.6250.75 1 0.65630.43750.0625  0.8
AK282.82.62.26 B0.50.6250.75 0.875 0.65630.43750.0625  0.8
AK303.052.82.46 B0.50.6250.75 0.8751 0.65630.43750.0625   0.9
AK323.2532.66 B0.50.6250.75 0.8751 0.65630.43750.0625  1.0
AK343.453.22.86 B0.50.6250.75 0.8751 0.65630.43750.0625  1.1
AK353.553.32.96 B0.50.6250.75 0.8751 0.65630.43750.0625  1.2
AK393.753.53.16 B0.50.6250.75 0.8750.06251 0.750.46871.1563  1.6
AK413.953.73.36 B0.50.6250.75 0.8750.062511.125 0.750.46871.1563  1.6
AK444.2543.66 B0.50.6250.75 0.8750.062511.125 0.750.46871.1563  1.9
AK464.454.23.86 B0.50.6250.75 0.8750.062511.125 0.750.46871.1563  2.0
AK494.754.54.16 B0.50.6250.75 0.8750.062511.125 0.750.46871.1563  2.1
AK514.954.74.36 B0.50.6250.75 0.87511.125 0.750.46871.1563  2.2
AK545.2554.66 B0.50.6250.75 0.8750.062511.125 1.1875 0.750.46871.1563  2.4
AK565.455.24.86 B0.50.6250.75 0.8750.062511.125 1.1875 0.750.46871.1563  2.5
AK595.755.55.16 C0.50.6250.75 0.8750.062511.125 1.1875 0.750.46871.1563  2.7
AK615.955.75.36 C0.50.6250.75 0.8750.062511.125 1.1875 0.750.46871.1563  2.8
AK646.2565.66 C0.50.6250.75 0.8750.062511.125 1.1875 0.750.46871.1563  3.0
AK666.456.25.86 C0.6250.75 11.125 0.750.46871.1563  3.0
AK696.756.56.16 C0.75 11.125 0.750.71881.4687  3.7
AK716.956.76.36 C0.50.6250.75 11.125 1.4375  0.750.71881.4687  4.3
AK747.2576.66 C0.50.6250.75 0.062511.125 1.18751.25 1.4375 0.750.7188*1.4687  4.5
AK797.757.57.16 C0.75 11.125 1.4375 0.750.71881.4687  4.7
AK817.957.77.36 C0.6250.75 1 1.1875 0.750.71881.4687  4.7
AK848.2587.66 C0.50.6250.75 0.06251 1.18751.4375 0.750.7188*1.4687  5.0
AK898.758.58.16 C0.75 11.125 1.4375 0.750.71881.4687  5.2
AK918.958.78.36 C0.75 1 0.750.71881.4687  5.2
AK949.2598.66 C0.50.6250.75 0.06251 1.18751.251.4375 0.750.7188*1.4687  5.5
AK999.759.59.16 C0.75 1 1.4375 0.750.7188*1.4687  5.7
AK10410.25109.66 C0.6250.75 1 1.18751.251.3751.4375 0.750.71881.4687  5.9
AK10910.7510.510.16 C0.75 1 1.3751.4375 0.750.71881.4687  6.1
AK11411.251110.66 C0.75 1 1.18751.4375 0.750.7188*1.4687  6.7
AK12412.251211.66 C0.6250.75 1 1.18751.251.4375 0.750.7188*1.4687  7.3
AK13413.251312.66 C0.75 1 1.18751.375 1.4375 0.750.71881.4687  8.2
AK14414.251413.66 C0.75 1 1.18751.4375 0.750.71881.4687  8.7
AK15415.251514.66 C0.75 1 1.4375 0.750.71881.4687  9.7
AK18418.25 18 17.66  C0.75  1  1.1875 1.4375  0.75 0.7188 1.4687   11.8

Additional sizes and customized dimensions are available according to customer requirements.

Applications of 8V QD Sheaves

Mining & Aggregate Equipment
Widely used in crushers, screening systems, and heavy-duty conveyor applications.

Cement & Steel Industry
Suitable for continuous heavy-load industrial transmission systems.

Heavy Conveyor Systems
Provides stable power transmission for bulk material handling equipment.

Compressors & Industrial Pumps
Used in high-horsepower industrial compressor and pump drive systems.

Industrial Processing Equipment
Applied in demanding industrial machinery requiring stable and reliable transmission performance.
