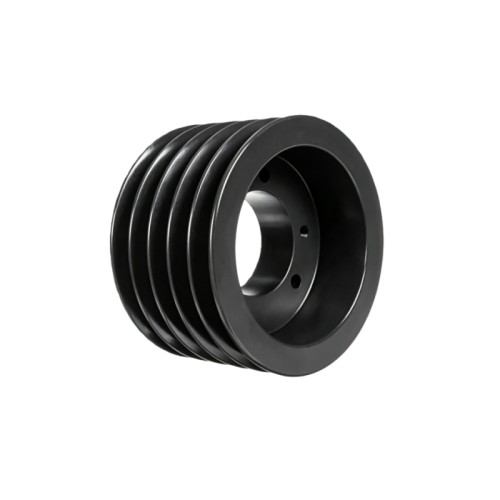

5 Grooves 3V QD Sheave
- Model
- 5-3V QD Sheave
Item specifics
- Material
- Cast Iron
- Belt Type
- 3V Narrow V-belt
- Groove Quantity
- 5 Grooves
- Pilot Bore/ QD Bushed
- Black Phosphate/ Anti-Rust Coating
- Bore Type
- Pilot Bore/ QD Bushed/ Finished Bore
- Balance
- Dynamically Balanced
Review
Description
About 5 Grooves 3V Sheave
A 5 Grooves 3V Sheave is a narrow V-belt sheave designed for use with 3V section belts. Compared with standard classical V-belt pulleys, 3V sheaves offer higher power transmission efficiency and better performance in compact drive systems.
The 5-groove configuration is commonly used in light- and medium-duty industrial applications where only one belt is required. Due to its compact structure and efficient transmission capability, the 3V pulley is widely used in North American industrial markets.
CTS manufactures cast-iron 3V sheaves to ANSI and RMA standards to ensure reliable belt compatibility and stable industrial performance.
For more information or to request a quote on our 5 Grooves 3V QD Sheave or any of our other products, please don't hesitate to contact us.
5-3V QD Sheave Dimension
CTS can supply a complete range of 5-groove 3V QD sheave sizes for different transmission requirements.
Additional sizes and customized dimensions are available according to customer requirements.
Compatible QD Bushings
CTS also supplies compatible QD bushings designed for use with our QD sheaves and other standard industrial belt pulley systems. Our QD bushings can directly replace many popular brands such as Martin, Browning, TB Woods, and other standard QD bushing systems commonly used in North American industrial applications.
