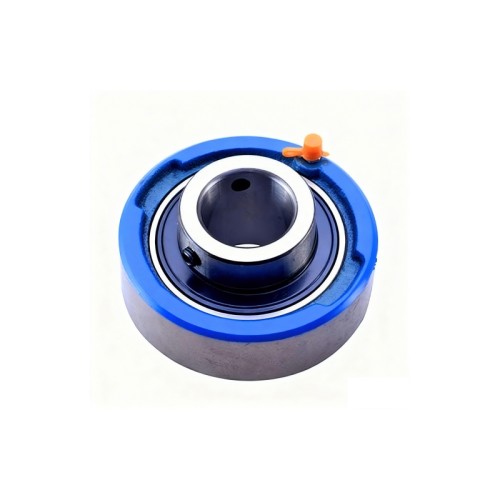

UCC200 Cartridge Bearing Units

Model: UCC 200

Item specifics

Bearing Insert: UC2 Series

Housing Type: Cartridge-type housing C200

Material: Cast Iron

Review

Description

Cartridge Bearing Units are compact, self-contained bearing assemblies designed for easy installation into machinery where a simple,press-fit, or bolt-in bearing solution is required. These units combine a high-quality deep-groove ball bearing insert with a cylindrical or precision-machined cartridge-style housing, providing stable support for both radial and axial loads.

Cartridge housings are typically made from cast iron, ductile iron, or pressed steel, offering excellent rigidity and vibration resistance. The insert bearings are pre-lubricated and equipped with reliable sealing systems to protect against dust, moisture, and contaminants.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

UCC200 Cartridge Units Dimensions

Unit NO.	Dimensions(mm/in.)						Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	g	r	B	n	Bearing No.	Housing No.	Weight (kg)
UCC201	12	72	20	2	31	12.7	UC201	C201	0.52
201-8	1/2	2.8346	25/32	0.079	1.2205	0.500	UC201-8	C201	0.51
UCC202	15	72	20	2	31	12.7	UC202	C202	0.51
202-9	9/16	2.8346	25/32	0.079	1.2205	0.500	UC202-9		0.51
202-10	5/8	2.8346	25/32	0.079	1.2205	0.500	UC202-10		0.51
UCC203	17	72	20	2	31	12.7	UC203	C203	0.50
203-11	11/16	2.8346	25/32	0.079	1.2205	0.500	UC203-11	C203	0.49
UCC204	20	72	20	2	31	12.7	UC204	C204	0.48
204-12	3/4	2.8346	25/32	0.079	1.2205	0.500	UC204-12	C204	0.48
UCC205	25	80	22	2	34.1	14.3	UC205	C205	0.63
205-13	13/16	3.1496	55/64	0.079	1.3425	0.563	UC205-13		0.67
205-14	7/8						UC205-14		0.66
205-15	15/16						UC205-15		0.64
205-16	1						UC205-16		0.63
UCC206	30	85	27	2	38.1	15.9	UC206	C206	0.79
206-17	1-1/16	3.3465	1-1/16	0.079	1.5000	0.626	UC206-17		0.80
206-18	1-1/8						UC206-18		0.81
206-19	1-3/16						UC206-19		0.79
206-20	1-1/4						UC206-20		0.78
UCC207	35	90	28	2	42.9	17.5	UC207	C207	0.88
207-20	1-1/4	3.5433	1-7/64	0.079	1.6890	0.689	UC207-20		0.94
207-21	1-5/16						UC207-21		0.91
207-22	1-3/8						UC207-22		0.88
207-23	1-7/16						UC207-23		0.85
UCC208	40	100	30	2.5	49.2	19	UC208	C208	1.17
208-24	1-1/2	3.9370	1-3/16	0.098	1.9370	0.748	UC208-24		1.21
208-25	1-9/16	3.9370	1-3/16	0.098	1.9370	0.748	UC208-25		1.18
UCC209	45	110	31	2.5	49.2	19	UC209	C209	1.46
209-26	1-5/8	4.3307	1-7/32	0.098	1.9370	0.748	UC209-26		1.56
209-27	1-11/16						UC209-27		1.52
209-28	1-3/4						UC209-28		1.48
UCC210	50	120	33	2.5	51.6	19	UC210	C210	1.85
210-29	1-13/16	4.7244	1-19/64	0.098	2.0315	0.748	UC210-29		1.97
210-30	1-7/8						UC210-30		1.92
210-31	1-15/16						UC210-31		1.87
210-32	2						UC210-32		1.83
UCC211	55	125	35	2.5	55.6	22.2	UC211	C211	2.05
211-32	2	4.9213	1-3/8	0.098	2.1890	0.874	UC211-32		2.20
211-33	2-1/16						UC211-33		2.14
211-34	2-1/8						UC211-34		2.10
211-35	2-3/16						UC211-35		2.03
UCC212	60	130	38	2.5	65.1	25.4	UC212	C212	2.36
212-36	2-1/4	5.1181	1-1/2	0.098	2.5630	1.000	UC212-36		2.49
212-37	2-5/16						UC212-37		2.41
212-38	2-3/8						UC212-38		2.34
212-39	2-7/16						UC212-39		2.27
UCC213	65	140	40	3	65.1	25.4	UC213	C213	2.79
213-40	2-1/2	5.5118	1-37/64	0.118	2.5630	1.000	UC213-40		2.88
213-41	2-9/16	5.5118	1-37/64	0.118	2.5630	1.000	UC213-41		2.79

recommend

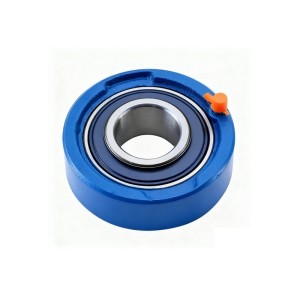

UKC200 Cartridge Bearing Units
