CA557 Agricultural Chain | New Holland 846 Round Baler Chain - Upper Chain Replacement
- Model
- CA557-U16
Item specifics
- Material
- 45Mn
- Color
- Natural
- Surface Treatment
- Shot Peening/Heat Treatment/Plating/Lubrication
- Accuracy
- High precision agricultural chain
- Quality
- Durable agricultural chain
- Interchangeability
- Directly interchangeable with other brands
Review
Description

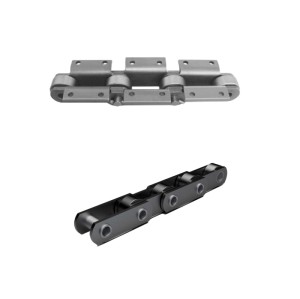

About CA557 Steel Agricultural Chain
This chain is a direct replacement for the New Holland 846 round baler upper chain. We use a high-strength CA557 agricultural chain, made with heat-treated, precision components for maximum performance and durability. The chain assemblies come in matched pairs, ensuring smooth and even operation. We also offer sprockets and bearings for round hay balers.
If you are looking for round baler chain replacements, CTS® durable baler chains are your best choice. If you have any questions, please contact us to help you.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
CA557 Steel Agricultural Chain Dimension
CA557 Chain Dimensions
- Chain Size: CA557
- Amount Of Links: 192
- Attachment Type: U16
- Attachment Spacing: 4.89"
- Amount of Attachments: 64
- Pitch (P): 1.630"
- Roller Width (W): 0.797"
- Roller Diameter (D): 0.700"
- Overall Width Riveted (C): 1.469"
- Overall Width Cottered: 1.594"
- Link Plate Height (H): 0.906"
- Link Plate Thickness (T): 0.125"
- Pin Diameter (E): 0.315"
- Ultimate Strength: 16,500 LBS
U16 Attachment Dimensions
- Dimension (E): 1.187"
- Dimension (J): 1.281"
- Dimension (K): 1.719"
- Dimension (L): 0.594"
- Dimension (M): 2.625"
- Dimension (N1): 0.328"
- Dimension (N2): 0.391"
- Dimension (T): 0.120"
