16018 Chain | Drop Forged Link Chain
- Model
- 16018 Chain
Item specifics
- Material
- Carbon Steel
- Color
- Natural
- Surface Treatment
- Shot Peening/Heat Treatment/Plating/Lubrication
- Accuracy
- High precision engineering chain
- Quality
- Durable engineering chain
- Interchangeability
- Directly interchangeable with other brands
Review
Description
About Standard Series Forged Link Chain

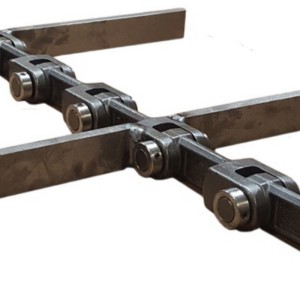

CTS® Drop Forged Link Chain
The forged fork link chain has demonstrated exceptional reliability as a conveying medium, combining versatility, strength, and resistance to abrasion. With a broad selection of materials, heat treatments, and flight configurations, they are effective for both drag and en masse handling applications across various industries.
For a quotation or other information on Forged Link Chain, please contact us and we are happy to help you.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
16018 Forged Link Chain Technical Data

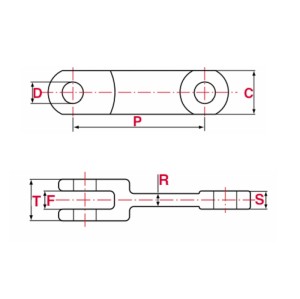

16018 Forged Chain Dimensions
- Pitch(P): 160 mm
- T: 46 mm
- C: 46 mm
- S: 22 mm
- F: 24 mm
- R: 15 mm
- D: 22 mm
- Breaking Load(TN): 320 kN
- Breaking Load(CN): 342 kN
- Breaking Load(CD): 560 kN
- Weight(Kg/M): 9.30 kg/m
TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered
