Model
80B Sprockets

Item specifics

Material
Carbon Steel
Color
Black
Surface Treatment
Blackening/Galvanizing/Phosphating
Accuracy
Precision teeth for optimum performance
Quality
Superior ANSI Sprocket
Interchangeability
Directly interchangeable with other brands

Review

Description

About D80B Sprockets with Split Taper Bushings

80-2 sprocket with a split taper bushing is designed to work with double-strand (also known as duplex) ANSI 80 roller chains, offering a robust solution for high-load and high-torque applications. This type of sprocket utilizes a split taper bushing system, providing a more secure grip on the shaft than taper-lock sprockets. This feature is particularly advantageous in scenarios requiring higher torque, as the split taper bushing can prevent slippage and maintain a tight fit even under significant stress.


For a quotation or other information on #80B sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket

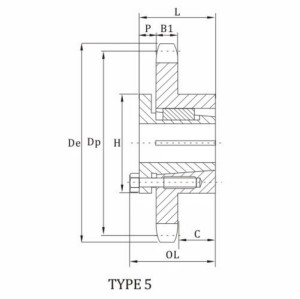

D80B sprocket with split taper bushings dimension chart

80B-2 Sprocket with Split Taper Bushings Technical Data

Pitch
1"
Roller φ
0.625"
Sprocket SizeSplit Bushing TypeBore
Range
(inch)		 De
(inch)		Dp
(inch)		No.
Teeth		 Type B1
(inch)		 B2
(inch)		 OL
(inch)		L
(inch)		P
(inch)		   C
(inch)		 H
(inch)		Wt.
Less
(Bushing)
D80P13P11/2-1 3/44.66  4.179 13130.557 1.710 2 19/321 15/16 5/8 13/3233.6
D80Q14Q21-2 5/84.98  4.494 14160.557 1.710 4 5/83 1/21 3/4 27/324 1/85.4
D80Q15Q21-2 5/85.31  4.810 15120.557 1.710 3 25/323 1/21 3/4 -4 1/85.4
D80Q16Q13/4-2 11/165.63  5.126 16130.557 1.710 2 25/322 1/2 3/4 -4 1/84.8
D80Q17Q13/4-2 11/165.95  5.442 17130.557 1.710 2 25/322 1/2 3/4 -4 1/86.0
D80Q18Q13/4-2 11/166.27  5.759 18130.557 1.710 2 25/322 1/2 3/4 -4 1/87.3
D80Q19Q13/4-2 11/166.59  6.076 19130.557 1.710 2 25/322 1/2 3/4 -4 1/88.5
D80R20R11 1/8-3 3/46.91  6.392 20120.557 1.710 3 25/322 7/81  5/32 -5 3/87.8
D80R21R11 1/8-3 3/47.24  6.710 21120.557 1.710 3 25/322 7/81  5/32 -5 3/89.4
D80R22R11 1/8-3 3/47.56  7.027 22120.557 1.710 3 25/322 7/81  5/32 -5 3/810.8
D80R23R11 1/8-3 3/47.88  7.344 23120.557 1.710 3 25/322 7/81  5/32 -5 3/812.3
D80R24R11 1/8-3 3/48.20  7.661 24120.557 1.710 3 25/322 7/81  5/32 -5 3/814.1
D80R25R11 1/8-3 3/48.52  7.976 25120.557 1.710 3 25/322 7/81  5/32 -5 3/815.8
D80R26R11 1/8-3 3/48.84  8.296 26120.557 1.710 3 25/322 7/81  5/32 -5 3/818.1
D80R27R11 1/8-3 3/49.16  8.614 27120.557 1.710 3 25/322 7/81  5/32 -5 3/820.4
D80R28R11 1/8-3 3/49.48  8.931 28120.557 1.710 3 25/322 7/81  5/32 -5 3/822.7
D80R30R11 1/8-3 3/410.11  9.567 30120.557 1.710 3 25/322 7/81  5/32 -5 3/826.8
D80R36R11 1/8-3 3/412.03  11.474 36120.557 1.710 3 25/322 7/81  5/32 -5 3/841.6
D80R42R11 1/8-3 3/413.94  13.382 42120.557 1.710 3 25/322 7/81  5/32 -5 3/858.0
D80R45R11 1/8-3 3/414.90  14.336 45120.557 1.710 3 25/322 7/81  5/32 -5 3/868.0
D80R48R21 3/8-3 5/815.86  15.290 48150.557 1.710 5  5/324 7/8 7/8 29/325 3/886.0
D80R52R21 3/8-3 5/817.13  16.562 52150.557 1.710 5  5/324 7/8 7/8 29/325 3/8103.0
D80R54R21 3/8-3 5/817.77  17.198 54150.557 1.710 5  5/324 7/8 7/8 29/325 3/8111.0
D80R60R21 3/8-3 5/819.64  19.107 60150.557 1.710 5  5/324 7/8 7/8 29/325 3/8135.0
D80R68R21 3/8-3 5/822.23  21.653 68150.557 1.710 5  5/324 7/8 7/8 29/325 3/8176.0
D80R72R21 3/8-3 5/823.46  22.926 72150.557 1.710 5  5/324 7/8 7/8 29/325 3/8198.0
D80U76U02 3/8-5 1/224.74  24.198 76150.557 1.710 5  5/324 7/81 1/2 21/328 3/8219.0
D80U95U02 3/8-5 1/230.83  30.245 95150.557 1.710 5  5/324 7/81 1/2 21/328 3/8342.0
