ANSI E100B Sprocket With QD Bushing

Model: 100B Sprockets

Item specifics

Material: Carbon Steel

Color: Black

Surface Treatment: Blackening/Galvanizing/Phosphating

Accuracy: Precision teeth for optimum performance

Quality: Superior ANSI Sprocket

Interchangeability: Directly interchangeable with other brands

Review

Description

About E100B Sprockets with QD Bushings

E100B sprockets with QD bushings are designed to meet ANSI standards, it features a Quick Detachable (QD) Taper Lock bushing, which allows for easy installation and removal without damaging the shaft or sprocket. Made from durable materials, E100B sprockets with QD bushings are suitable for various industrial applications.

For a quotation or other information on #100B sprockets, please contact us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

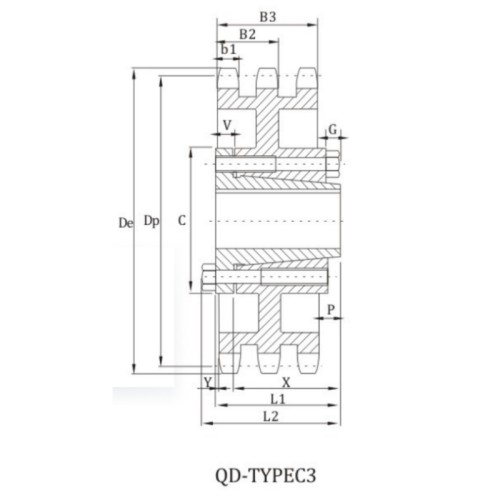

E100B sprocket with qd bushings dimension chart

100B-3 Sprocket with QD Bushings Technical Data

Pitch	1 1/4"
Roller φ	0.750"

No. Teeth	Sprocket Size	Bushing Type	De	Dp	Type	Max Bore	L1	L2	C	Y	P	G	V	X	B1	B3	Weight(Approx)
No. Teeth	Sprocket Size	Bushing Type	De	Dp	Type	Max Bore	L1	L2	C	Y	P	G	V	X	B1	B3	With Hub	Rim Only
35	E100F35	F	14.640	13.945	B2	3 15/16	3 63/64	4 23/64	6 5/8	1/2	23/64	1/8	1/2	2 1/2	0.669	3.485	112	100
45	E100F45	F	18.630	17.920	B2	3 15/16	3 63/64	4 23/64	6 5/8	1/2	23/64	1/8	1/2	2 1/2	0.669	3.485	139	120
60	E100J60	J	24.600	23.884	C3	4 7/16	4 1/2	5	7 1/4	1/2	33/64	3/8	11/16	3 3/16	0.669	3.485	197	178
70	E100J70	J	28.580	27.862	C3	4 7/16	4 1/2	5	7 1/4	1/2	33/64	3/8	11/16	3 3/16	0.669	3.485	247	228
80	E100J80	J	32.570	31.839	C3	4 7/16	4 1/2	5	7 1/4	1/2	33/64	3/8	11/16	3 3/16	0.669	3.485	287	268
