ANSI E40B Sprocket With QD Bushing

Model: 40B Sprockets

Item specifics

Material: Carbon Steel

Color: Black

Surface Treatment: Blackening/Galvanizing/Phosphating

Accuracy: Precision teeth for optimum performance

Quality: Superior ANSI Sprocket

Interchangeability: Directly interchangeable with other brands

Review

Description

About E40B Sprockets with QD Bushings

E40B sprockets with QD bushings are designed to meet ANSI standards, it features a Quick Detachable (QD) Taper Lock bushing, which allows for easy installation and removal without damaging the shaft or sprocket. Made from durable materials, E40B sprockets with QD bushings are suitable for various industrial applications.

For a quotation or other information on #40B sprockets, please contact us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

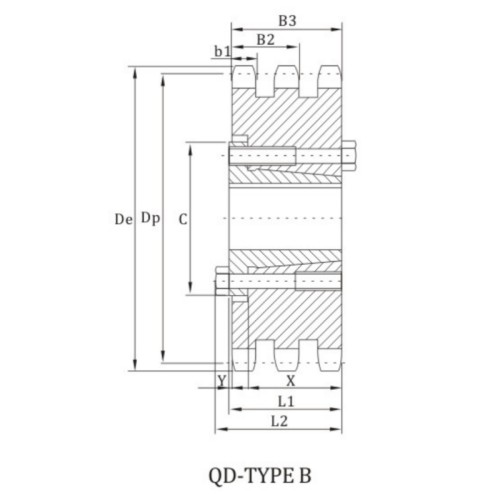

E40B sprocket with qd bushings dimension chart

40B-3 Sprocket with QD Bushings Technical Data

Pitch	1/2"
Roller φ	0.312"

No. Teeth	Sprocket Size	Bushing Type	De	Dp	Type	Max Bore	L1	L2	C	Y	X	B1	B3	Weight(Approx)
No. Teeth	Sprocket Size	Bushing Type	De	Dp	Type	Max Bore	L1	L2	C	Y	X	B1	B3	With Hub	Rim Only
36	E40SK36	SK	6.020	5.737	B	2 5/8	2 1/8	2 1/8	3 7/8	15/32	1 1/4	0.275	1.407	8.16	6.16
42	E40SK42	SK	6.970	6.691	B	2 5/8	2 1/8	2 1/8	3 7/8	15/32	1 1/4	0.275	1.407	11.92	9.52
48	E40SK48	SK	7.930	7.645	B	2 5/8	2 1/8	2 1/8	3 7/8	15/32	1 1/4	0.275	1.407	15.13	13.16
52	E40SK52	SK	8.570	8.281	B	2 5/8	2 1/8	2 1/8	3 7/8	15/32	1 1/4	0.275	1.407	18.08	16.08
60	E40SK60	SK	9.840	9.554	B	2 5/8	2 1/8	2 1/8	3 7/8	15/32	1 1/4	0.275	1.407	24.60	22.06
68	E40SF68	SF	11.120	10.826	B	2 15/16	2 1/4	2 1/4	4 5/8	19/32	1 1/4	0.275	1.407	31.98	29.98
72	E40SF72	SF	11.750	11.463	B	2 15/16	2 1/4	2 1/4	4 5/8	19/32	1 1/4	0.275	1.407	37.40	34.40
76	E40SF76	SF	12.390	12.099	B	2 15/16	2 1/4	2 1/4	4 5/8	19/32	1 1/4	0.275	1.407	51.92	48.92
84	E40SF84	SF	13.660	13.372	B	2 15/16	2 1/4	2 1/4	4 5/8	19/32	1 1/4	0.275	1.407	56.70	53.78
95	E40SF95	SF	15.410	15.122	B	2 15/16	2 1/4	2 1/4	4 5/8	19/32	1 1/4	0.275	1.407	58.94	55.94
102	E40SF102	SF	16.530	16.236	B	2 15/16	2 1/4	2 1/4	4 5/8	19/32	1 1/4	0.275	1.407	62.24	59.24
