Metric 28A Stainless Steel Plate Wheel Sprockets
Metric 28A Stainless Steel Plate Wheel Sprockets
Metric 28A Stainless Steel Plate Wheel Sprockets

Metric 28A Stainless Steel Plate Wheel Sprockets

Model
28A Plate Wheel Sprocket

Item specifics

Material
Stainless Steel
Color
Natural
Surface Treatment
Blackening/Galvanizing/Phosphating
Accuracy
Precision teeth for optimum performance
Quality
Superior Metric Sprocket
Interchangeability
Directly interchangeable with other brands

Review

Description

About Metric 28A Stainless Steel Plate Wheel Sprocket

Metric 28A plate wheel sprockets are a type of industrial sprocket used in various industrial applications. Made from high-quality 304 or 316 stainless steel, these sprockets 28A stainless steel plate wheel sprockets offer superior resistance to corrosion, making them ideal for applications in food processing, pharmaceuticals, and environments with high moisture or chemical exposure.


Any questions about the chain sprockets, please feel free to contact us. Our technical staff will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket
Metric 28A plate wheel sprocket dimension chart

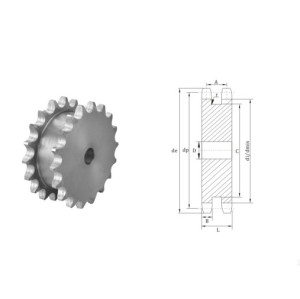

Metric 28A Stainless Steel Plate Wheel Sprocket Dimension

SPROCKETS  1"3/4 × 1"1/4
For Chain Acc. to DIN 8187
ISO/R 606
Metric 28A plate wheel sprocket teeth dimension chart
Tooth radius r3
44 mm
Radius width C
5 mm
Tooth width B1
29.4 mm
Part No.No. TeethOutside Dia.（de）Pitch Dia.（dp）Bore Dia.（D1）Weight（Lbs.）
28A88132.0116.15 201.71
28A99148.4129.96 202.26
28A1210162.3143.85 202.88
28A1111176.3157.77 253.53
28A1212189.5171.74 254.29
28A1313204.2185.75 255.12
28A1414218.2199.76 256.03
28A1515232.3213.79 257.01
28A1616246.3227.84 308.02
28A1717260.0241.91 309.14
28A1818274.0255.98 3010.34
28A1919289.0270.06 3011.61
28A2020303.0284.15 3012.95
28A2121317.0298.24 3014.37
28A2222331.0312.34 3015.86
28A2323345.0326.44 3017.42
28A2424359.0340.55 3019.05
28A2525373.0354.66 3020.76
28A2626387.0368.77 3022.54
28A2727401.4382.88 3024.39
28A2828416.0397.00 3026.32
28A2929430.0411.12 3028.51
28A3030444.0425.24 3030.40
28A3131458.0439.37 3032.34
28A3232472.0453.49 3034.35
28A3333486.0467.62 3037.28
28A3434500.0481.75 3039.45
28A3535514.0495.88 3041.69
28A3636529.0510.01 3044.16
28A3737543.0524.14 3047.07
28A3838557.0538.27 3049.53
28A3939571.0552.40 3053.23
28A4040585.0566.54 3055.87
28A4545656.0637.22 3070.26
28A5050726.0707.91 3087.01
28A5757825.0806.89 40113.56
28A6060869.0849.32  40126.08
28A76761095.01075.6 40203.89
