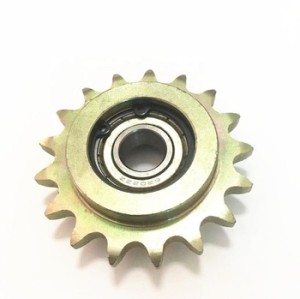

Metric 24A Stainless Steel Plate Wheel Sprockets

Model: 24A Plate Wheel Sprocket

Item specifics

Material: Stainless Steel

Color: Natural

Surface Treatment: Blackening/Galvanizing/Phosphating

Accuracy: Precision teeth for optimum performance

Quality: Superior Metric Sprocket

Interchangeability: Directly interchangeable with other brands

Review

Description

About Metric 24A Stainless Steel Plate Wheel Sprocket

Metric 24A plate wheel sprockets are designed to work with 24B roller chains. Stainless steel 24A plate wheel sprockets are a robust and corrosion-resistant component commonly used in industrial applications for power transmission. Made primarily from 304-grade stainless steel, it is designed to withstand harsh environments.

Any questions about on stainless steel chain sprockets, please feel free to contact us. Our technical staff will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

Metric 24A plate wheel sprocket dimension chart

Metric 24A Stainless Steel Plate Wheel Sprocket Dimension

SPROCKETS 1"1/2 × 1"

For Chain Acc. to DIN 8187

ISO/R 606

Metric 24A plate wheel sprocket teeth dimension chart

Tooth radius r3	38 mm
Radius width C	4 mm
Tooth width B1	24.1 mm

Part No.	No. Teeth	Outside Dia.（de）	Pitch Dia.（dp）	Bore Dia.（D1）	Weight（Lbs.）
24A8	8	115.0	99.55	20	0.98
24A9	9	126.4	111.40	20	1.32
24A12	10	138.0	123.29	20	1.69
24A11	11	150.0	135.21	20	2.07
24A12	12	162.0	147.22	20	2.53
24A13	13	174.2	159.18	20	3.03
24A14	14	186.2	171.22	20	3.57
24A15	15	198.2	183.26	20	4.16
24A16	16	210.3	195.30	25	4.79
24A17	17	222.3	207.34	25	5.47
24A18	18	234.3	21,942	25	6.19
24A19	19	246.5	231.49	25	6.95
24A20	20	258.6	243.57	25	7.76
24A21	21	270.6	255.65	25	8.57
24A22	22	282.7	267.73	25	9.46
24A23	23	294.8	279.80	25	10.40
24A24	24	306.8	291.88	25	11.38
24A25	25	319.0	304.00	25	12.41
24A26	26	331.0	316.08	30	13.47
24A27	27	343.2	328.19	30	14.59
24A28	28	355.2	340.27	30	15.74
24A29	29	367.3	352.38	30	16.94
24A30	30	379.5	364.50	30	18.91
24A31	31	391.6	376.62	30	19.47
24A32	32	403.7	388.69	30	20.80
24A33	33	415.8	400.81	30	22.18
24A34	34	427.8	412.93	30	23.60
24A35	35	440.0	425.04	30	25.06
24A36	36	452.0	437.16	30	26.60
24A37	37	464.2	449.27	30	28.12
24A38	38	476.2	461.39	30	29.71
24A39	39	488.5	473.50	30	31.58
24A40	40	500.6	485.62	30	33.16
24A41	41	512.6	497.72	30	34.77
24A42	42	524.7	509.83	30	36.43
24A43	43	536.8	521.95	30	38.56
24A44	44	549.0	534.07	30	40.34
24A45	45	561.2	546.19	30	42.15
24A46	46	573.3	558.30	30	44.47
24A47	47	585.4	570.42	30	46.37
24A48	48	597.4	582.54	30	48.29
24A49	49	609.5	594.66	30	50.27
24A50	50	621.7	606.78	30	52.30
24A51	51	633.8	618.90	30	54.36
24A52	52	646.0	631.01	30	56.47
24A53	53	658.0	643.13	30	58.59
24A54	54	670.2	655.28	30	61.45
24A55	55	682.3	667.40	30	63.69
24A56	56	694.4	679.51	30	65.96
24A57	57	706.5	691.63	30	68.28
24A58	58	718.6	703.74	30	70.64
24A59	59	730.7	715.86	30	73.04
24A60	60	742.8	727.97	30	76.30
24A62	62	767.2	752.24	40	81.40
24A64	64	791.3	776.48	40	86.59
24A65	65	803.4	788.59	40	89.26
24A66	66	815.6	800.71	40	91.99
24A68	68	839.8	824.98	40	97.44
24A70	70	864.2	849.21	40	103.28
24A72	72	888.4	873.48	40	110.32
24A75	75	924.8	909.83	40	119.54
24A76	76	936.9	921.98	40	122.69
24A80	80	985.4	970.44	40	135.72
24A85	85	1046.0	1031.10	40	152.93
24A95	95	1167.3	1152.33	40	190.46
