KANA NK100B Sprockets

Model: 100B Sprocket

Item specifics

Material: Carbon Steel

Color: Natural

Surface Treatment: Blackening/Galvanizing/Phosphating

Accuracy: Precision teeth for optimum performance

Quality: Superior Metric Sprocket

Interchangeability: Directly interchangeable with other brands

Review

Description

About KANA NK100B Sprocket

KANA Standard 100B Sprockets are designed for optimal performance and durability, KANA sprockets are engineered to meet rigorous industrial standards. Featuring precise tooth profiles and high-grade materials, KANA NK100B Sprockets ensure efficient power transmission and extended lifespan. Our advanced manufacturing techniques guarantee superior quality, making KANA 100B Sprockets the preferred choice for demanding industrial environments.

For a quotation or other information, please get in touch with us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

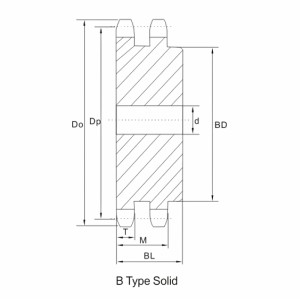

KANA 100B Sprocket Dimension

CHAIN	Pitch	31.75 mm
	Internal width	19.05 mm
	Roller φ	19.05 mm
SPROCKET	Tooth width (T)	17.6 mm

Type	Teeth	Do	Dp	Bore d			BD	BL	Wt kg	Material
Type	Teeth	Do	Dp	Stock	Min	Max	BD	BL	Wt kg	Material
NK100B	9	106	92.84	20	22	40	★70	50	1.6	C45 Sold Hardened teeth
	10	117	102.74	20	22	45	65	50	1.9
	11	127	112.70	20	22	51	75	50	2.3
	12	138	122.67	20	22	57	86	50	2.9
	13	148	132.67	20	22	63	94	50	3.1
	14	158	142.68	20	22	66	98	50	3.6
	15	168	152.71	20	22	66	98	50	4.2
	16	179	162.74	20	22	66	98	50	4.6
	17	189	172.79	20	22	75	107	50	5.3
	18	199	182.84	20	22	75	107	50	5.7
	19	209	192.90	20	22	75	107	50	6.1
	20	220	202.96	20	22	75	107	50	6.5
	21	230	213.03	20	22	75	107	50	7.0
	22	240	223.10	20	22	80	117	56	7.9	Fe360 Welding
	23	250	233.17	20	Z2	80	117	56	8.5
	24	260	243.25	20	22	80	117	56	8.8
	25	270	253.32	20	22	80	117	56	9.3
	26	281	263.40	20	22	80	117	56	9.8
	27	291	273.49	20	22	80	117	56	10.3
	28	301	283.57	20	22	80	117	56	10.9
	29	311	293.66	20	22	80	117	56	11.5
	30	321	303.75	26	28	80	117	56	12.1
	32	341	323.92	26	28	80	117	56	14.5
	33	352	334.01	26	28	80	117	56	16.1
	34	362	344.11	26	28	80	117	56	16.6
	35	372	354.20	26	28	89	127	63	17.5
	36	382	364.29	26	28	89	127	63	18.0
	37	392	374.38	26	28	89	127	63	18.9
	38	402	384.48	26	28	89	127	63	19.5
	40	422	404.67	26	28	89	127	63	20.4
	41	433	414.77	26	28	89	127	63	21.5
	42	443	424.86	26	28	89	127	63	22.6
	45	473	455.16	26	28	89	127	63	24.7
	47	493	475.35	26	28	89	127	63	26.7
	48	503	485.45	26	28	89	127	63	27.5
	50	524	505.65	26	28	89	127	63	30.0
	54	564	546.05	26	28	103	147	80	37.4
	55	574	556.15	26	28	103	147	80	41.6
	60	625	606.66	26	28	103	147	80	44.3
	65	675	657.17	26	28	103	147	80	54.5
	70	726	707.68	26	28	103	147	100	64.7

★ Has recessed groove in hub for chain clearance.
