KANA 140A Sprockets

Model: 140 Sprockets

Item specifics

Material: Carbon Steel

Color: Nature

Surface Treatment: Blackening/Galvanizing/Phosphating

Accuracy: Precision teeth for optimum performance

Quality: Superior KANA Sprocket

Interchangeability: Directly interchangeable with other brands

Review

Description

About K140A KANA Sprockets

CTS® KANA K140A Sprocket, crafted to KANA standards(JIS) for exceptional performance and reliability in industrial applications. Our KANA sprockets are made from premium-grade materials, ensuring high strength and durability to withstand heavy loads and high-torque conditions.

For a quotation or other information, please contact us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

K140A KANA Sprocket Technical Data

Pitch	44.45 mm
Internal width	25.40 mm
Roller φ	25.40 mm
Tooth width (T)	23.5 mm

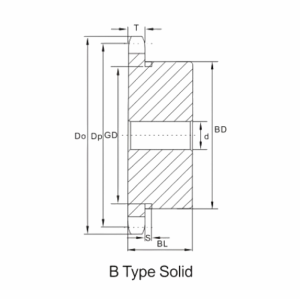

Type	Teeth	Do	Dp	Bore d		Wt kg
Type	Teeth	Do	Dp	Stock	Min	Wt kg
K140A	10	163	143.84	26	28	2.90
	11	178	157.78	26	28	3.60
	12	193	171.74	26	28	4.20
	13	207	185.74	26	28	4.90
	14	221	199.76	26	28	5.70
	15	236	213.79	26	28	6.60
	16	250	227.84	26	28	7.50
	17	264	241.91	26	28	8.40
	18	279	255.98	26	28	9.40
	19	293	270.06	26	28	10.50
	20	307	284.15	26	28	11.60
	21	322	298.24	26	28	12.80
	22	336	312.34	26	28	14.10
	23	350	326.44	26	28	15.30
	24	364	340.54	26	28	16.70
	25	379	354.65	26	28	1810
	26	393	368.77	26	28	19.60
	28	421	397.00	26	28	23.00
	30	450	425.24	26	28	26.00
	32	478	453.49	26	28	29.70
	35	521	495.88	26	28	35.60
	38	563	538.27	26	28	41.90
	40	591	566.54	26	28	46.40
	42	620	594.81	26	28	51.10
	45	662	637.22	26	28	58.80
	48	705	679.63	26	28	66.90
	50	733	707.91	26	28	72.50
	54	790	764.47	26	28	84.60
	60	875	849.32	26	28	104.00
