KANA 25A Sprockets

Model: 25 Sprockets

Item specifics

Material: Carbon Steel

Color: Nature

Surface Treatment: Blackening/Galvanizing/Phosphating

Accuracy: Precision teeth for optimum performance

Quality: Superior KANA Sprocket

Interchangeability: Directly interchangeable with other brands

Review

Description

About K25A KANA Sprockets

The KANA 25A Sprocket is a high-quality, precision-engineered sprocket designed for compatibility with #25 chains. CTS® K25A Sprockets adhere to stringent Japanese Industrial Standards (JIS), ensuring exceptional performance and durability. Made from premium materials and featuring advanced treatments like induction hardening, our KANA 25A Sprocket provides reliable operation and long-lasting wear resistance.

For a quotation or other information, please contact us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

K25A KANA Sprocket Technical Data

Pitch	6.35 mm
Internal width	3.18 mm
Roller φ	3.30 mm
Tooth width (T)	2.8 mm

Type	Teeth	Do	Dp	Bore d		Wt kg
Type	Teeth	Do	Dp	Stock	Min	Wt kg
K25A	10	23	20.55	9	11	0.02
	12	28	24.53	9	11	0.03
	13	30	26.53	9	11	0.04
	14	32	28.54	9	11	0.04
	15	34	30.54	9	11	0.05
	16	36	32.55	9	11	0.05
	17	38	34.56	9	11	0.07
	18	40	36.57	9	11	0.07
	20	44	40.59	9	11	0.09
	24	52	48.65	9	11	0.14
	25	54	50.66	9	11	0.16
	27	58	54.70	9	11	0.17
	28	60	56.71	9	11	0.18
	29	62	58.73	9	11	0.20
	30	64	60.75	10	12	0.23
	32	68	64.78	10	12	0.27
	33	70	66.80	10	12	0.28
	35	74	70.84	10	12	0.30
	36	76	72.86	10	12	0.32
	37	78	74.88	10	12	0.37
	38	80	76.90	10	12	0.41
	40	84	80.93	11	13	0.43
	42	89	84.97	11	13	0.47
	45	95	91.03	11	13	0.50
	50	105	101.13	11	13	0.59
	55	115	111.23	11	13	0.70
	60	125	121.33	11	13	0.87
	70	145	141.54	11	13	1.81
	75	155	151.64	12	14	1.37
	80	165	161.74	12	14	1.62

recommend

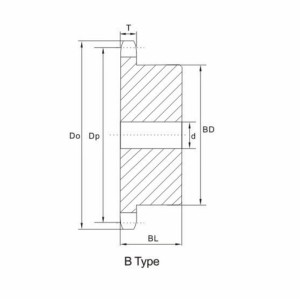

KANA NK25B Sprockets
