50B-2 Plain Bore Sprockets

Model: 50B-2 Plain Bore Sprockets

Item specifics

Meterial: Carbon Steel

Color: Natural

Surface Treatment: Blackening/Galvanizing/Phosphating

Review

Description

About 50B Plain Bore Duplex Sprocket

CTS 50 B stock bore duplex sprockets is everything you need in an optimized, professional sprocket. Manufactured of carbon steel, we’ve been offering roller chain sprocket components that outperform the rest. These sprockets are equipped with a hub on one side for enhanced functionality.CTS 50B plain bore sprockets can be tailored to your specific needs with black oxide,optional oil-dipped, painted, or plated finishes. Trust in our industrial expertise to deliver a top-tier product designed for your unique application.

For quotation or other information on sprockets, please contact us and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

High-precision Sprocket
Durable Sprocket
Directly interchangeable with other brands
OEM Sprocket

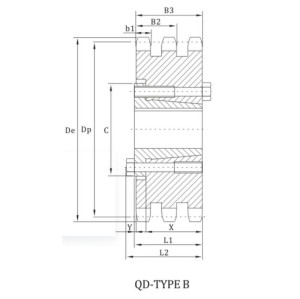

50B-2 stock bore sprocket dimension chart

50B-2 Plain Bore Sprocket Technical Data

Pitch	5/8”
Roller φ	0.400”
Tooth width b1	0.332”
Tooth width B2	1.045”

Part No.	No. Teeth	Type	Outside Dia.（de） mm	Bore Dia.（D1） inch		Hub Dia.（dm） inch	LTB（A） inch	Weight Lbs. (Approx.)
Part No.	No. Teeth	Type	Outside Dia.（de） mm	Min	Max	Hub Dia.（dm） inch	LTB（A） inch	Weight Lbs. (Approx.)
D50B11	11	B	2.500	5/8	15/16	1 15/32	1 3/4	.96
D50B12	12	B	2.710	5/8	1 1/8	1 11/16	1 3/4	1.25
D50B13	13	B	2.910	5/8	1 5/16	1 7/8	1 3/4	1.56
D50B14	14	B	3.110	5/8	1 3/8	2 1/16	1 3/4	1.86
D50B15	15	B	3.320	3/4	1 1/2	2 5/16	1 3/4	2.22
D50B16	16	B	3.520	3/4	1 3/4	2 1/2	1 3/4	2.62
D50B17	17	B	3.720	3/4	1 7/8	2 11/16	1 3/4	3.04
D50B18	18	B	3.920	3/4	1 15/16	2 15/16	1 3/4	3.58
D50B19	19	B	4.120	1	2 1/8	3 1/8	1 3/4	3.90
D50B20	20	B	4.320	1	2 1/4	3 1/4	1 3/4	4.26
D50B21	21	B	4.520	1	2 3/8	3 1/2	1 3/4	4.90
D50B22	22	B	4.720	1	2 3/8	3 9/16	1 7/8	5.58
D50B23	23	B	4.920	1	2 1/2	3 5/8	1 7/8	6.10
D50B24	24	B	5.120	1	2 1/2	3 5/8	1 7/8	6.50
D50B25	25	B	5.320	1	2 1/2	3 5/8	1 7/8	6.94
D50B26	26	B	5.520	1	2 1/2	3 3/4	1 7/8	7.54
D50B30	30	B	6.320	1	2 1/2	3 3/4	1 7/8	9.40
D50B32	32	B	6.720	1	2 1/2	3 3/4	1 7/8	10.46
D50B35	35	B	7.320	1	2 1/2	3 3/4	1 7/8	12.28
D50B36	36	B	7.520	1 3/16	2 3/4	4	2 1/8	13.94
D50B40	40	B	8.320	1 3/16	2 3/4	4	2 1/8	16.54
D50B42	42	B	8.720	1 3/16	2 3/4	4	2 1/8	17.92
D50B45	45	B	9.310	1 3/16	2 3/4	4	2 1/8	20.30
D50B48	48	B	9.910	1 3/16	2 3/4	4 1/2	2 3/8	24.08
D50B52	52	B	10.710	1 3/16	2 3/4	4 1/2	2 3/8	27.42
D50B54	54	B	11.110	1 3/16	2 3/4	4 1/2	2 3/8	29.16
D50B60	60	B	12.300	1 5/16	3	4 1/2	2 3/8	35.88
D50B68	68	B	13.890	1 5/16	3	4 1/2	2 3/8	44.98
D50B72	72	B	14.690	1 5/16	3	4 1/2	2 3/8	50.22
D50B76	76	B	15.490	1 5/16	3	4 1/2	2 3/8	45.64
D50B84	84	B	17.080	1 5/16	3	4 1/2	2 3/8	51.64
D50B95	95	B	19.270	1 5/16	3	4 1/2	2 3/8	64.32
D50B96	96	B	19.470	1 5/16	3	4 1/2	2 3/8	67.42
D50B102	102	B	20.660	1 5/16	3	4 1/2	2 3/8	72.68
D50B112	112	B	22.650	1 5/16	3 5/16	5 1/4	2 3/8	90.22
