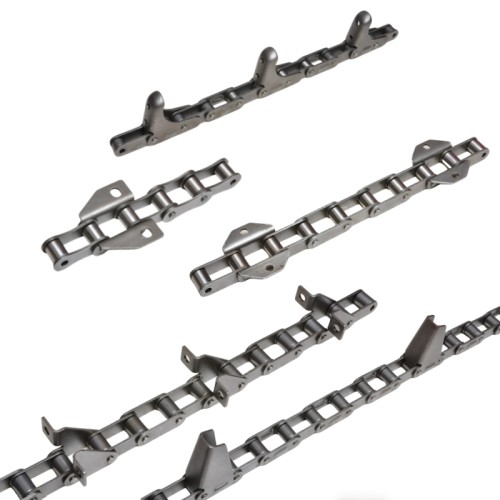

C210AF1 C212AF1 Agriculture Combine Chains Corn Harvester Conveyor Chain
C210AF1 C212AF1 Agriculture Combine Chains Corn Harvester Conveyor Chain
Price
US $0.5
Model
C210AF1 C212AF1
MOQ
1 piece

Item specifics

Model
C210AF1/C212AF1
Delivery time
30-60 days

Review

Description

About C210A C212A Combine Chain


C210AF1 and C212AF1 are agricultural combine chains designed for conveying, feeding, and power-transmission systems in combine harvesters and other heavy-duty crop-harvesting machinery.


Combined chains are developed to meet the specific requirements of agricultural harvesting equipment, where the chain may be exposed to crop residue, dust, vibration, impact loads, and continuously changing operating conditions.


With appropriate sprocket matching, lubrication, tensioning, and maintenance, these chains can be used in demanding agricultural conveying and feeding mechanisms.

C210AF1 C212AF1 Combine Chains Dimension


CHIAN SIZEPitchRoller
diameter
Width between
inner plates
Pin
diameter
Pin
length
Inner plate
depth
Attachment
dimension
Tensile
strength
Pd1
max
b1
min
d2
max
L
max
Lc
max
h2
max
FC d4gQ
min
mmmmmm mmmmmm mmmmmm mmmmkN/lbf
C210AF131.7510.169.40 5.0820.723.315.0 35.2054.07.023.0 21.8/4955
C212AF138.1011.9112.57 5.9425.928.318.0 10.9256.0-- 31./7068
