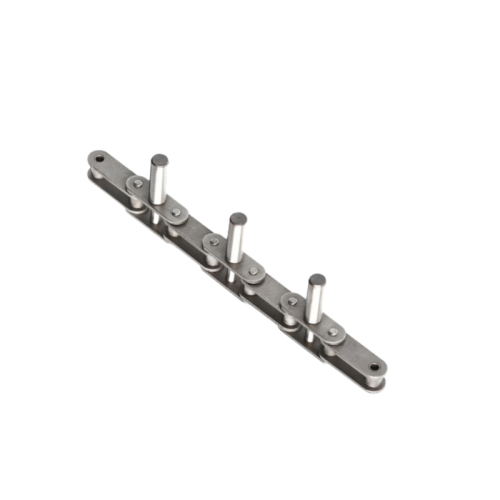

C212A Extended Pin Double Pitch Conveyor Chain C2060 Double Pitch Chain

Price: US $0.5

Model: C212A | C2060 Double Pitch Conveyor Chain with Extended Pin

MOQ: 1 piece

Item specifics

Material: 40Mn

Color: Natural

Quality: Durable conveyor chain

Interchangeability: Directly interchangeable with other brands

Review

Description

Double Pitch Conveyor Chain

Double pitch conveyor chain is a specialized variant designed for applications requiring extended spans, slower speeds, and moderate loads. Double pitch conveyor chains are commonly utilized in material handling equipment, packaging machinery, and assembly lines, its simple construction facilitates easy maintenance and replacement. Trust CTS® double pitch conveyor chains for efficient, reliable, and economical conveying solutions in industrial environments.

For a quotation or other information on double pitch conveyor chains, please contact us, and we will be happy to help you.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features
Precision Machined Components
Low Friction
Directly interchangeable with other brands
Uniform Heat Treatment

Double Pitch Conveyor Chain Dimension

Double Pitch Conveyor Chains Dimension Chart

ISO Chain No.	ANSI Chain No	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Tensile strength	Average tensile strength	Weight per meter
		P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T max	Q min	Q0	q
		m m	m m	m m	m m	m m	m m	m m	m m	kN/Ibf	kN	kg/m
C208A	C2040	25.40	7.95	7.85	3.96	16.6	17.8	12.0	1.50	14.1/3205	16.7	0.50
C208B		25.40	8.51	7.75	4.45	16.7	18.2	11.8	1.60	18.0/4091	19.4	0.55
C210A	C2050	31.75	10.16	9.40	5.08	20.7	22.2	15.0	2.03	22.2/5045	28.1	0.78
C210B		31.75	10.16	9.65	5.08	19.5	20.9	14.7	1.70	22.4/5036	24.6	0.75
C212A	C2060	38.10	11.91	12.57	5.94	25.9	27.7	18.0	2.42	31.8/7227	36.8	1.12
C212B		38.10	12.07	11.68	5.72	22.5	24.2	16.0	1.85	29.0/6519	31.9	0.90
C216A	C2080	50.80	15.88	15.75	7.92	32.7	36.5	24.0	3.25	56.7/12886	65.7	2.08
C216B		50.80	15.88	17.02	8.28	36.1	39.1	21.0	4.15/3.10	60.0/13489	66.0	2.14
C220A	C2100	63.50	19.05	18.9	9.53	40.4	44.7	30	4	88.5/20114	102.6	3.01
C220B		63.50	19.05	19.56	10.19	41.3	45	26.4	4.50/3.50	95.0/21357	104.5	2.93
C224A	C2120	76.2	22.23	25.22	11.1	50.3	54.3	35.7	4.80	127.0/28864	147.3	4.66
C224B		76.2	25.40	25.40	14.63	63.4	57.8	33.2	6.00/4.80	160.0/35969	176	5.17
C232A	C2160	101.60	28.58	31.75	14.27	64.8	69.6	47.8	6.40	226.8/51545	278.9	8.15
