4016 Roller Chain Coupling - KC Type KC4016 Coupling

Price: US $0.5

Model: KC 4016 Roller Chain Coupling

MOQ: 1 piece

Item specifics

Material: Aluminum and Steel

Color: Natural

Accuracy: High precision coupling

Quality: Easy Installation and Maintenance

Interchangeability: Directly interchangeable with other brands

Review

Description

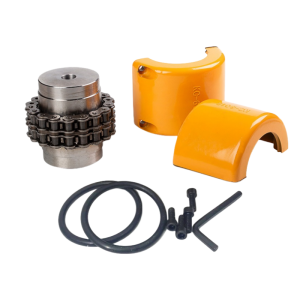

KC4016 Roller Chain Coupling

CTS® 4016 Chain Coupling

Chains couplings are mechanical devices used to connect two shafts for transmitting power and motion. They consist of two sprockets connected by a duplex roller chain, providing a flexible yet durable link between the shafts. Roller chain couplings are known for their ability to accommodate misalignment between shafts, reducing stress on connected equipment and prolonging the life of machinery. They offer excellent shock absorption and can handle varying loads and speeds. Chains couplings are commonly used in industrial applications such as conveyors, pumps, and mixers, where reliable power transmission is essential. With their simple design and robust construction, roller chain couplings are a cost-effective solution for many power transmission needs.

For a quotation or other information on KC 4016 roller chain coupling, please contact us and we will be happy to help you.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Roller Chain Coupling Specifications

4016 Chain Coupling Dimensions

Chain Type: 40-2×16
Bore(min): 14 mm
Bore(max): 32 mm

Dimension of the spro

L: 87.4 mm
I: 40 mm
S: 7.4 mm
D: 50 mm
O: 77 mm
C: 14.4 mm
Rated Torque (GD^2×10^-3): 3.285 kgf.m^2
Weight: 1.4 kg

DIM.OF.CLSE

A: 92 mm
B: 72 mm
Rated Torque (GD^2×10^-3): 2.41 kgf.m^2
Weight: 0.4 kg

KC 4016 Roller Chain Coupling dimension chart

TYPE	CHAIN TYPE	BORE		DIMENSION OF THE SPRO						RATED TORQUE GD^2x10^-3 (kgf.m^2)	Weight (kg)	DIM.OF.CLSE		RATED TORQUE GD^2x10^-3 (kgf.m^2)	Weight (kg)
TYPE	CHAIN TYPE	MIN	MAX	L	I	S	D	O	C	RATED TORQUE GD^2x10^-3 (kgf.m^2)	Weight (kg)	A	B	RATED TORQUE GD^2x10^-3 (kgf.m^2)	Weight (kg)
KC-3012	06B-2x12	12	16	64.8	29.8	5.2	35	45	10.2	0.233	0.4	69	63	0.88	0.3
KC-4012	40-2x12	12	22	79.4	36	7.4	35	62	14.4	1.020	0.8	77	72	1.03	0.3
KC-4014	40-2x14	12	28	79.4	36	7.4	43	69	14.4	1.924	1.1	84	75	1.42	0.4
KC-4016	40-2x16	14	32	87.4	40	7.4	50	77	14.4	3.285	1.4	92	72	2.41	0.4
KC-5014	50-2x14	15	35	99.7	45	9.7	55	86	18.1	6.01	2.2	101	85	3.63	0.5
KC-5016	50-2 x16	16	40	99.7	45	9.7	62	93	18.1	9.72	2.7	110	87	4.81	0.6
KC-5018	50-2 x18	16	45	99.7	45	9.7	70	106	18.1	15.42	3.8	122	85	6.97	0.8
KC-6018	60-2x18	20	56	123.5	56	11.5	85	127	22.8	40.21	6.2	147	105	16.84	1.2
KC-6020	60-2x20	20	60	123.5	56	11.5	100	139	22.8	62.87	7.8	158	105	21.27	1.6
KC-6022	60-2x22	20	71	123.5	56	11.5	110	151	22.8	93.45	10.4	168	117	28.97	1.8
KC-8018	80-2 x18	20	80	141.2	63	15.2	110	169	29.3	142.03	12.7	190	129	52.13	2.5
KC-8020	80-2 x20	20	90	145.2	65	15.2	120	185	29.3	204.90	16.0	210	137	82.39	2.9
KC-8022	80-2 x 22	20	100	157.2	71	15.2	140	202	29.3	341.17	20.2	226	137	104.07	3.6
KC-10020	100-2x20	25	110	178.8	80	18.8	162	233	35.8	646.29	33.0	281	153	233.87	4.6
KC-12018	120-2x18	35	125	202.7	90	22.7	170	256	45.4	1,075.71	47.0	307	181	460.74	6.2
KC-12022	120-2x22	35	140	222.7	100	22.7	210	304	45.4	2,454.50	72.0	357	181	803.00	8.0
