Transmission Roller Chain 24A-1 120-1 Short Pitch Roller Chain
- Price
- US $0.5
- Model
- 24A-1/120-1 Roller Chain
- MOQ
- 1 piece
Item specifics
- Material
- 45Mn
- Color
- Natural/bule/yellow
- Surface Treatment
- Shot Peening/Heat Treatment/Plating/Lubrication
- Accuracy
- High precision roller chain
- Quality
- Durable roller chain
- Interchangeability
- Directly interchangeable with other brands
Review
Description
About ANSI #120 Roller Chains

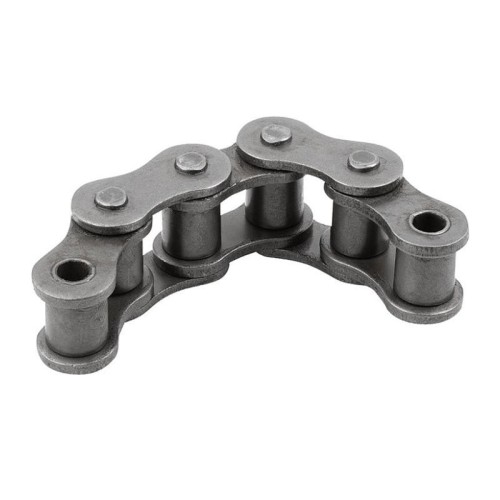

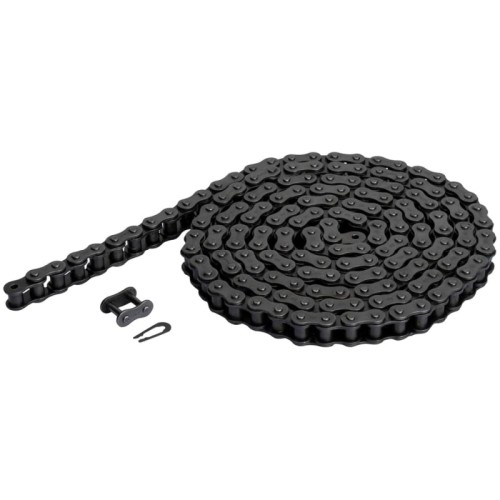

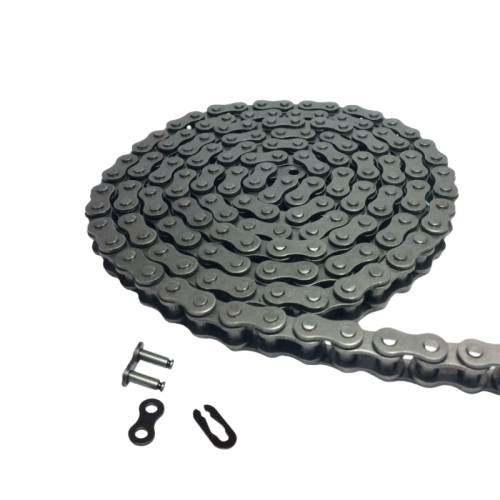

CTS® #120 Roller Chain
Our #120 roller chains adhere to ANSI B29.1 Standards, ensuring complete interchangeability with other ANSI-certified roller chains and proper operation on #120 chain sprockets. Crafted with precision, our roller chains feature high-quality heat-treated, shot-peened, and hardened components, complemented by a factory-applied premium lubricant for optimal performance.
CTS® high-quality #120 ANSI simplex roller chains built to keep your machine running!
For quotation or other information on ANSI single-strand roller chains, please contact us and we will be happy to help you.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
ANSI #120 Roller Chain Dimension
#120 Roller Chain Dimensions
- Pitch(P): 38.1000 mm
- Roller diameter(d1): 22.23 mm
- Width between inner plates(b1): 25.22 mm
- Pin diameter(d2): 11.10 mm
- Pin length(L): 50.30 mm
- Pin length(Lc): 54.30 mm
- Inner plate depth(h2): 35.70 mm
- Plate thickness(T): 4.80 mm
- Tensile strength: 127.00/28864 kN/lbf
- Weight per meter: 5.62 kg/m
