Summary
These three types of racks offer different characteristics and application capabilities, allowing them to be applied in various industries and machinery that require linear motion, precision, and power transmission
What are the three types of racks?
A spur rack is a type of linear gear with straight teeth that run parallel to the axis of the rack. Spur racks are used in applications where linear motion is required, such as in rack and pinion systems. They are commonly employed in industries like robotics, CNC machines, and automation systems.
Helical racks have teeth that are cut at an angle, causing them to resemble the shape of a helix. Unlike spur racks, helical racks have curved teeth that provide smoother engagement with a mating pinion gear. This design helps to reduce noise and vibration during operation. Helical racks are commonly used in applications that require high precision and smooth motion, such as in machine tools and linear motion systems.

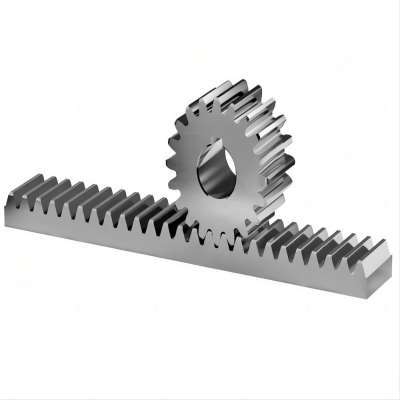

Rack and pinion gear systems consist of a rack (linear gear) and a pinion (cylindrical gear with teeth). The pinion gear meshes with the teeth on the rack, converting rotary motion into linear motion or vice versa. These systems are widely used for various purposes, including steering systems in vehicles, lifting mechanisms, and machine tools.
