Rice Harvester Chains

Model: Rice Harvester Chains

Item specifics

Material: Carbon Steel

Color: Natural

Surface Treatment: Shot Peening/Heat Treatment/Plating/Lubrication

Accuracy: High precision harvester chain

Quality: Durable harvester chain

Interchangeability: Directly interchangeable with other brands

Review

Description

About Rice Harvester Chains

Welcome to CTS®, where precision meets performance in agricultural machinery chains. Our Rice Harvester Chains are meticulously crafted to serve as the backbone of rice harvesting equipment, ensuring seamless transmission for optimal productivity.

Designed specifically for Rice Harvesters, our chains encompass a range of specialized features. Our lineup includes clamping transmission chains, available in two pitches (33mm and 35mm) and six inner chain plate widths (22mm, 25mm, 30mm, 35mm, 50mm, 58mm). Versatile link joints of varying heights and angles can be seamlessly assembled to suit the precise needs of harvesting machines such as grain combines and power threshers.

Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features
Precision Machined Components
Low Friction
Directly interchangeable with other brands
Uniform Heat Treatment

As a leading industrial transmission chain manufacturer based in China, we boast over 14 years of industry experience. Our dedication to quality craftsmanship has earned us recognition across the globe. In addition to Rice Harvester Chains, we specialize in a diverse array of transmission chains catering to various industries. From oilfield chains to chains for the beverage and cement industries, our product range exemplifies reliability and durability.

Our commitment to customer satisfaction is reflected in our extensive clientele spanning the USA, Canada, Argentina, Brazil, Germany, France, Poland, Malaysia, Vietnam, and beyond. Discover the difference with our competitively priced, premium-quality chains.

Browse our website for more information or reach out to us directly. Thank you for choosing CTS® for all your agricultural machinery chain needs.

Our range of rice harvester chains comprises 415 series lifting chains equipped with finger attachments and tine feeding chains featuring pitches of 33mm and 35mm.
These products find extensive application in semi-feeding rice harvesting equipment.
Utilizing top-tier raw materials, cutting-edge process equipment, advanced heat treatment, surface shot peening treatment on the chain plate, and premium anti-rust oil coating across the entire chain, our products meet the stringent quality demands of users.

Rice Harvester Chain Technical Data

415 Series Hoisting Chains Rice Harvester Chains

415 Series Hoisting Chains Rice Harvester Chains Dimension Chart

CTS® Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length			Inner plate depth	Plate thickness	Attachment dimension		Tensile strength	Average tensile strength
	P	d1 max	b1 min	d2 max	L max	Lc max	Ld max	h2 max	T max	d3 nom	C	Q min	Q0
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN
415F1	12.7	7.77	4.90	3.64	11.0	12.1	12.95	9.5	1.1	4.02	12.0	6.86/1559	8.1
415F2	12.7	7.77	4.90	3.64	11.0	12.1	12.95	9.5	1.1	4.02	12.0	6.86/1559	8.1
415F3	12.7	7.77	4.90	3.64	11.0	12.1	12.95	9.5	1.1	4.02	12.0	6.86/1559	8.1
415F4	12.7	7.77	4.68	3.62	11.8	-	-	9.6	1.3	4.00	12.0	10.30/2341	12.1
415F5	12.7	7.77	4.68	3.63	11.8	13.0	14.00	9.6	1.3	4.00	12.0	10.30/2341	12.1
415S	12.7	7.77	4.80	3.96	12.8	14.3	15.70	12.0	1.5	4.02	12.0	15.69/3566	16.3
415S-A	12.7	7.77	4.90	3.96	12.8	14.3	15.70	12.0	1.5	4.02	12.0	13.80/3136	16.3
415SF1	12.7	7.77	4.80	3.96	13.0	14.5	-	10.4	1.5	4.50	12.0	13.93/3166	16.3
415SF4	12.7	7.77	4.80	3.96	13.0	14.5	15.70	12.0	1.5	4.00	12.0	13.80/3136	16.3
415SF6	12.7	7.77	4.80	3.96	13.0	14.5	15.70	10.4	1.5	4.00	12.0	13.93/3166	16.3
415SF7	12.7	7.77	4.80	4.00	13.0	14.5	15.70	12.0	1.5	4.50	12.0	15.69/3566	16.3
415SF10	12.7	7.77	4.80	4.00	13.0	14.5		12.0	1.5	4.50	12.0	13.93/3166	16.3
415SF16	12.7	7.77	4.80	3.60	11.0	12.1	13.00	12.0	1.1	4.00	12.0	6.86/1559	8.1
420JF1	12.7	7.77	6.25	3.96	14.7	16.1	18.50	12.0	1.5	4.00	12.0	16.00/3636	18.8

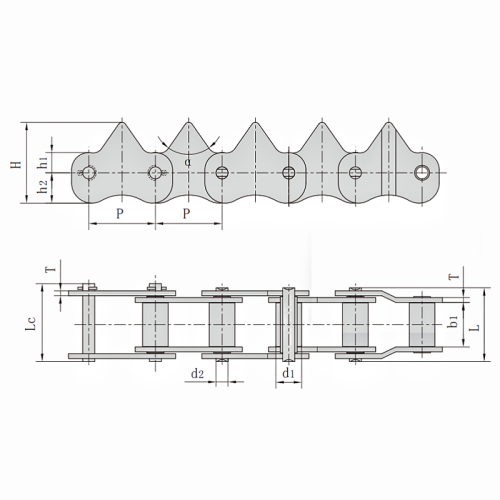

CTS® Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Tooth angle	Plate dimension			Plate thickness	Tensile strength	Average tensile strength
	P	d1 max	b1 min	d2 max	L max	Lc max	α	h1	h2	H	T	Q min	Qo
	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	kN/lbf	kN
3322-63201	33	12.7	22.0	5.94	36.4	38.4	70°	10	15	40	2.42	19.60/4455	22.5
3325-23160	33	12.8	25.0	7.00	35.9	38.7	60°	10	13	43	1.60	21.60/4909	24.5
3325-23550	33	12.8	25.0	7.00	35.9	38.7	90°	10	13	38	1.60	21.60/4909	24.5
3325-49200	33	12.8	25.0	7.00	35.9	38.7	70°	10	13	38	1.60	21.60/4909	24.5
3325-9059	33	12.7	25.0	5.94	39.4	42.6	90°	10	13	38	2.42	19.61/4457	22.5
3325-9059F1	33	10.5	25.0	5.94	39.4	42.6	90°	10	13	38	2.42	19.61/4457	22.5
3330-27150	33	12.8	30.0	7.00	40.9	43.7	70°	10	13	38	1.60	21.60/4909	24.5
3330-28361	33	12.8	30.0	7.00	40.9	43.7	60°	10	13	43	1.60	21.60/4909	24.5
3330-3852	33	12.7	30.0	5.94	44.4	47.6	90°	10	13	38	2.42	19.61/4457	22.5
3330-66402F1	33	12.7	30.0	5.94	44.4	47.6	60°	10	13	43	2.42	19.614457	22.5
3330-66402F2	33	10.5	30.0	5.94	44.4	47.6	60°	10	13	43	2.42	19.61/4457	22.5
3330-74311	33	12.7	30.0	5.94	44.4	47.6	70°	10	13	38	2.42	19.61/4457	22.5
3330-74311F1	33	10.5	30.0	5.94	44.4	47.6	70°	10	13	38	2.42	19.61/4457	22.5
