ANSI #35 Ball Bearing Idler Sprockets
ANSI #35 Ball Bearing Idler Sprockets
ANSI #35 Ball Bearing Idler Sprockets
Model
#35 Idler Sprockets

Item specifics

Material
Carbon Steel
Material
Natural
Surface Treatment
Blackening/Galvanizing/Phosphating
Accuracy
Precision teeth for optimum performance
Quality
Superior ANSI Sprocket
Interchangeability
Directly interchangeable with other brands

Review

Description

About ANSI #35 Ball Bearing Idler Sprocket

The ANSI #35BB idler sprocket is distinguished by its incorporation of a ball bearing, ensuring smooth operation. Engineered with hardened teeth and a high-quality ball bearing, it fully complies with ANSI Standards. Crafted for durability and optimal performance, this #35 idler sprocket is constructed from top-quality steel and components, guaranteeing longevity in operation.


For inquiries or additional information about #35 ball-bearing idler sprockets, please don't hesitate to reach out to us. We're here to assist you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket

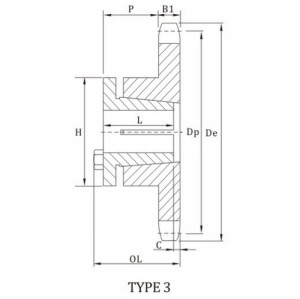

ANSI #35 idler sprocket with ball bearing dimension chart
ANSI #35 Ball Bearing Idler Sprocket Technical Data
Part No.No. TeethBore SizeOutside Diameter(O.D)Dimension(T)Weight
35BB18H181/2"2.352"0.168"0.60 LBS
35BB18H185/8"2.352"0.168"0.60 LBS
35BB19H191/2"2.47"1.68"0.35 LBS
35BB19H195/8"2.47"1.68"0.35 LBS
35BB20H205/8"2.59"1.68"0.38 LBS
