Metric 08B-2 Pilot Bore Sprockets
Metric 08B-2 Pilot Bore Sprockets
Metric 08B-2 Pilot Bore Sprockets

Metric 08B-2 Pilot Bore Sprockets

Model
08B Sprocket

Item specifics

Meterial
Carbon Steel
Color
Natural
Surface Treatment
Blackening/Galvanizing/Phosphating
Accuracy
Precision teeth for optimum performance
Quality
Superior Metric Sprocket
Interchangeability
Directly interchangeable with other brands

Review

Description

About Metric 08B Duplex Pilot Bore Sprocket

CTS® 08B-2 roller chain sprockets are manufactured for metric 08B-2 roller chains to ISO and DIN standards. Our industrial sprockets are precision manufactured from high quality steel, and can replace the sprockets of other well-known brand manufacturers. The chart below shows the standard size of our 08B double strand chain sprockets, if you don't find the exact sprocket you need, we can also customize it for you.


To get a quote on Metric  08B-2 Sprockets or for more information, please contact us and we will be happy to assist you.



Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket

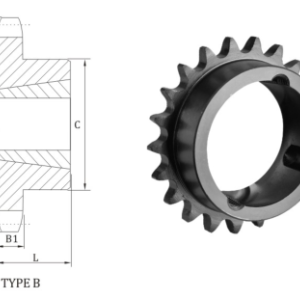

Metric 08B-2 pilot bore sprocket dimension chart
Metric 08B-2 Pilot Bore Sprocket Technical Data
SPROCKETS  1/2" × 5/16"
For Chain Acc. to DIN 8187
ISO/R 606
Metric 08B-2 pilot bore sprocket teeth dimension chart
Tooth radius r3
13 mm
Radius width C
1.3 mm
Tooth width b1
7 mm
Tooth width B2
21 mm
Part No.No. TeethOutside Dia.（de）Pitch Dia.（dp）Hub Dia.（dm）Bore Dia.（D2）LTB（A）Weight（Lbs.）
08B-2-8837.2 33.18 2010320.10
08B-2-9941.0 37.13 2410320.13
08B-2-101045.2 41.10 2810320.18
08B-2-111148.7 45.07 3212350.24
08B-2-121253.0 49.07 3512350.30
08B-2-131357.4 53.06 3812350.36
08B-2-141461.8 57.07 4212350.44
08B-2-151565.5 61.09 4612350.52
08B-2-161669.5 65.10 5014350.63
08B-2-171773.6 69.11 5414350.73
08B-2-181877.8 73.14 5814350.85
08B-2-191981.7 77.16 6214350.97
08B-2-202085.8 81.19 6614351.10
08B-2-212189.7 85.22 7016401.29
08B-2-222293.8 89.24 7016401.37
08B-2-232398.2 93.27 7016401.46
08B-2-2424101.8 97.29 7516401.64
08B-2-2525105.8 101.33 8016401.82
08B-2-2626110.0 105.36 8516402.02
08B-2-2727114.0 109.40 8516402.12
08B-2-2828118.0 113.42 9016402.34
08B-2-2929122.0 117.46 9516402.56
08B-2-3030126.1 121.50 10016402.79
08B-2-3131130.2 125.54 10020402.87
08B-2-3232134.3 129.56 10020403.00
08B-2-3333138.4 133.60 10020403.13
08B-2-3434142.6 137.64 10020403.26
08B-2-3535146.7 141.68 10020403.40
08B-2-3636151.0 145.72 10020403.54
08B-2-3737154.6 149.76 10020403.69
08B-2-3838158.6 153.80 10020403.84
08B-2-3939162.7 157.83 10020404.00
08B-2-4040166.8 161.87 10020404.15
08B-2-4141171.4 165.91 *10820505.16
08B-2-4242175.4 169.94 *10820505.32
08B-2-4343179.7 173.98 *10820505.50
08B-2-4444183.8 178.02 *10820505.67
08B-2-4545188.0 182.07 *10820505.85
08B-2-4646192.1 186.10 *10820506.03
08B-2-4747196.2 190.14 *10820506.21
08B-2-4848200.3 194.18 *10820506.53
08B-2-4949204.3 198.22 *10820506.73
08B-2-5050208.3 202.26 *10820506.92
08B-2-5151212.1 206.30 *10820507.11
08B-2-5252216.1 210.34 *10820507.31
08B-2-5353220.2 214.37 *10820507.53
08B-2-5454224.1 218.43 *10820507.73
08B-2-5555228.1 222.46 *10820507.94
08B-2-5656232.2 226.50 *10820508.16
08B-2-5757236.4 230.54 *10820508.39
08B-2-5858240.5 234.58 *10820508.63
08B-2-5959244.5 238.62 *10820508.85
08B-2-6060248.6 242.66 *10820509.09
08B-2-6262256.9 250.74 *10820509.79
08B-2-6464265.1 258.82 *108205010.31
08B-2-6565269.0 262.86 *108205010.56
08B-2-6666273.0 266.91 *108205010.82
08B-2-6868281.0 274.99 *108205511.65
08B-2-7070289.0 283.07 *108205512.20
08B-2-7272297.2 291.15 *108205512.77
08B-2-7575309.2 303.28 *108205513.64
08B-2-7676313.3 307.32 *108205513.95
08B-2-7878321.4 315.40 *108205514.56
08B-2-8080329.4 323.49 *108205515.18
08B-2-8585349.0 343.69 *110205516.85
08B-2-9090369.9 363.90 *110205519.49
08B-2-9595390.1 384.11 *110205521.40
08B-2-100100410.3 404.32 *110205523.42
08B-2-110110450.7 444.74 *110205527.75
08B-2-114114466.9 460.91 *110205529.60
08B-2-120120491.2 485.16 *110205532.50
08B-2-125125511.3 505.37 *110205535.00
