ANSI #2120 Double Pitch Roller Chain 224A
- Model
- ANSI Simplex Roller Chain
Item specifics
- Meterial
- Carbon Steel
- Color
- Natural
- Surface Treatment
- Shot Peening/Heat Treatment/Plating/Lubrication
- Accuracy
- High precision roller chain
- Quality
- Durable roller chain
- Interchangeability
- Directly interchangeable with other brands
Review
Description

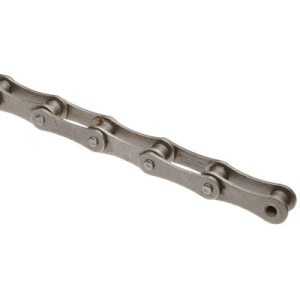

CTS® #2120 Double Pitch Roller Chain
ANSI #2120 double pitch roller chains are a specialized type of roller chain widely used in industrial applications, unlike standard roller chains, ANSI double pitch roller chains have longer pitch lengths between the rollers, making them suitable for conveying large or irregularly shaped items. With high-quality materials and precise engineering, CTS® double pitch roller chains offer reliable performance, reduced maintenance requirements, and extended service life, making them a preferred choice for various industrial settings.
CTS® high quality ANSI #2120 double pitch roller chains built to keep your machine running!
For quotation or other information on ANSI double pitch roller chains, please contact us and we will be happy to help you.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
#2120 Double Pitch Roller Chain Dimensions
- Pitch(P): 76.20 mm
- Roller diameter(d1): 22.23 mm
- Width between inner plates(b1): 25.22 mm
- Pin diameter(d2): 11.10 mm
- Pin length(L): 50.30 mm
- Pin length(Lc): 54.30 mm
- Inner plate depth(h2): 35.70 mm
- Plate thickness(T): 4.80 mm
- Tensile strength: 127.00/28864 kN/lbf
- Weight per meter: 4.06 kg/m
