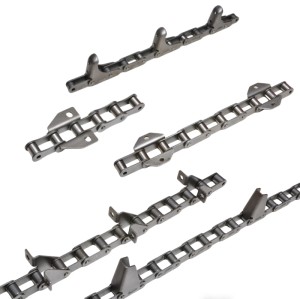

Combine Chains C210AF1 for Agriculture Roller Chain High Quality China Supplier

Group Combine chains
PriceUS $0.5 / piece
Min. Order 1 piece
Terms of Payment L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time 2020-11-18
Item specifics
ModelC210AF1
Delivery time30-60 days
  • Description
  • Product review
No.C210AF1/C212AF1 Dimensions
Combine Chains Specifications
Chain No.
Pitch
(mm)
Roller Diameter
(mm)
Width between inner plates
(mm)
Pin diameter
d2
(mm)
Pin length
L
(mm)
Pin length
Lc
(mm)
Inner plate depth
h2
(mm)
Tensile strength
kN/lbf
Average tensile strength kN
C210AF1
31.75
10.16
9.40
5.08
20.7
23.3
15.0
21.8/4955
28.5
C212AF1
38.10
11.91
12.57
5.94
25.9
28.3
18.0
31.1/7068
38.7
POProduct Information


The products are made of high quality alloy steel production. The plates are punched and squeezed bores by precision technology. The pin, bush, roller are machined by high-efficiency automatic equipment and automatic grinding equipment, then through heat treatment of carburization, carbon and nitrogen protection mesh belt furnace, surface blasting process etc. Made from the steel and the up-to-date skills as well as precision procedures, the combine chains can withstand strong pressure and high temperature.


Availability* Standard chains

* Customized chains





Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.





High quality
:

Corrosion resistance

Durable, Robust and Reliable

Bad condition resistance

Lower weight--high speed




Services:

Surface treatment

Hardened teeth

Serious quality control




Application industries:

Manufacturing

Agriculture
Building Material
Oil and Gas

Technology and Science

……



Roller Chain High Quality China Supplier
